Selecting the right Cable Tray affects electrical safety, installation speed, maintenance access, and long-term project costs. Global buyers often compare products across unfamiliar markets, specifications, and supplier claims. A tray that performs well in a dry warehouse may fail in a coastal plant without suitable corrosion protection. Conditions matter.

This guide examines ten widely used Cable Tray types, including ladder, perforated, solid-bottom, wire mesh, channel, and specialized designs. Each type serves a different installation need. Ladder trays support heavy power cables and improve ventilation. Perforated trays offer balanced support for control and instrumentation wiring. Wire mesh trays can simplify routing changes above crowded ceilings. Small details matter.

From practical project reviews, experienced engineers usually assess load capacity, span distance, cable separation, grounding, finish quality, and accessory compatibility. They also check test reports, material certificates, dimensional tolerances, and installation guidance before approving a supplier. Regional standards can differ, so buyers should verify requirements with qualified local professionals. A persuasive product page is not enough.

Some decisions remain imperfect. Cost estimates may overlook future expansion, while a low-profile tray may restrict later cable additions. Even corrosion-resistant finishes need inspection after cutting, drilling, or transport damage. This overview helps procurement teams compare strengths, limitations, and suitable applications with greater confidence. It does not replace a site assessment. Use the details carefully.

Top 10 Cable Tray Types for Global Buyers
Table of Contents [Hide]
1 Cable Tray Fundamentals: NEMA VE 1 Load Classes and Span Requirements
2 Top 10 Cable Tray Types: Ladder, Perforated, Solid-Bottom, Wire Mesh, and More
3 Material Comparison: Steel, Aluminum, and FRP by Weight and Corrosion Resistance
4 Sizing and Installation: Apply NEC 392 Fill Limits and Standard 300 mm Spans
5 Global Buyer Checklist: IEC 61537, IP Ratings, Fire Tests, and Total Cost Metrics

Cable Tray Fundamentals: NEMA VE 1 Load Classes and Span Requirements

Selecting a cable tray requires more than checking width and material. NEMA VE 1 load classes provide a practical reference for capacity and support spacing. The number usually indicates the required uniform load in pounds per foot. The letter identifies the tested support span: A represents 4 feet, B 5 feet, and C 6 feet. For example, a 20C tray is evaluated for a 20-pound-per-foot load across a 6-foot span.

Field conditions can change the result. Cable weight should include insulation, fittings, future additions, and possible water accumulation. Long spans usually increase deflection, even when the total cable weight seems acceptable. Supports must align with the system design, especially near splices, bends, and heavy vertical drops. NEMA VE 1 testing offers useful guidance, but it does not replace project-specific engineering. I have seen trays selected by load class alone, then weakened by poor support placement.

Tips: Confirm the latest NEMA VE 1 requirements before ordering. Calculate actual cable weight per foot, then add a realistic growth allowance. Check whether the selected span matches the tray’s published test data. Keep heavier cables near the support center when practical. Also review seismic, corrosion, temperature, and installation conditions. Small assumptions matter. A conservative selection may cost more initially, but an under-rated tray can create expensive field corrections.

Top 10 Cable Tray Load Classes for Global Buyers

Cable Tray Fundamentals: NEMA VE 1 Load Classes and Span Requirements

This chart presents the ten commonly specified NEMA VE 1 load magnitudes for the “A” span series. The “A” designation represents a 5 ft support span, while the values indicate uniformly distributed load in lb/ft. Actual tray selection should also consider tray type, width, material, splice performance, concentrated loads, environmental conditions, and the manufacturer’s tested span data.

Top 10 Cable Tray Types: Ladder, Perforated, Solid-Bottom, Wire Mesh, and More

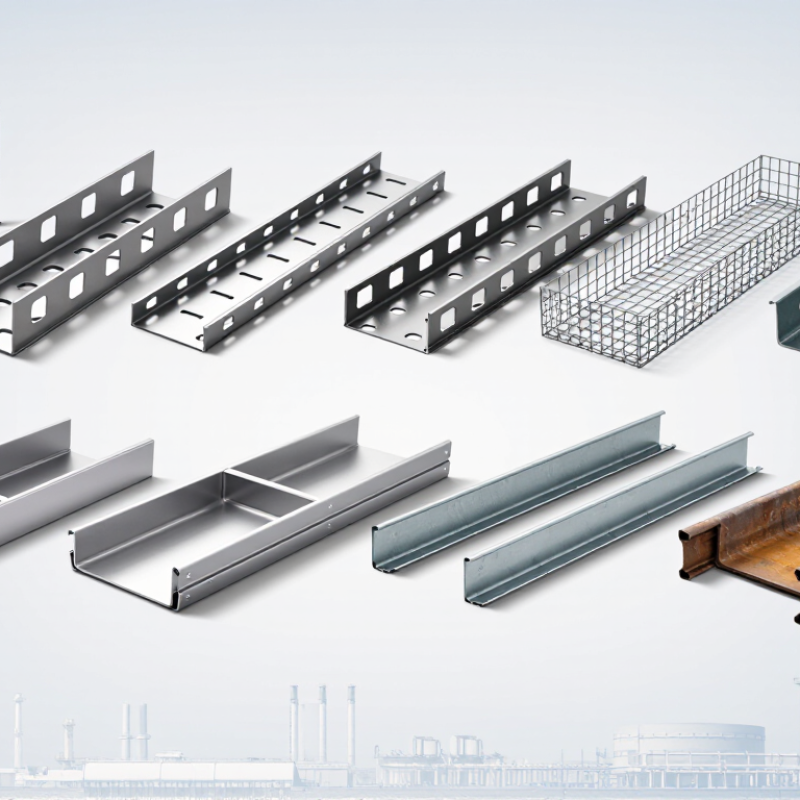

Top 10 Cable Tray Types for Global Buyers

Choosing the right cable tray begins with the cable environment, not appearance. Ladder trays suit power cables because their rungs improve ventilation and simplify tie-downs. Perforated trays offer balanced support for control and instrumentation cables. Solid-bottom trays protect small cables from falling dust, dripping liquids, and debris. They may retain more heat, so spacing requires attention.

Wire mesh trays are lightweight and practical for data, fiber, and low-voltage systems. Channel trays fit narrow routes and short cable runs. Trough trays provide continuous support where cables need extra protection. Single-rail trays reduce material use, but cable separation can be less convenient. Multi-tier trays organize power, control, and communication circuits on separate levels. Covered trays help in dusty workshops or outdoor areas. Fiberglass-reinforced plastic trays resist corrosion near coastal plants and chemical-processing zones.

Field measurements matter more than catalog drawings. Check cable fill, load, span, bending radius, and available clearance. Local electrical rules and project specifications may follow different testing methods, so buyers should verify them before ordering. I have seen well-sized trays fail when supports were spaced too widely. That detail is easy to miss. Stainless hardware may also be necessary, although it can increase cost sharply. No tray type is perfect; a stronger design may still create installation problems when access is poor.

Top 10 Cable Tray Types for Global Buyers - Top 10 Cable Tray Types: Ladder, Perforated, Solid-Bottom, Wire Mesh, and More

Rank Cable Tray Type Basic Construction Ventilation & Cable Support Typical Applications Main Advantages Key Limitations Common Materials & Finishes
1 Ladder Tray Two longitudinal side rails connected by regularly spaced rungs. Very high ventilation; cables can be secured to the rungs with approved ties or clamps. Power distribution, industrial plants, substations, renewable-energy facilities, and long cable runs. Excellent heat dissipation, easy cable access, strong load capacity, and efficient cable installation. Cables are more exposed to dust, falling objects, and accidental impact than in covered or solid-bottom systems. Pre-galvanized or hot-dip galvanized steel, stainless steel, aluminum, and painted steel.
2 Perforated Tray Continuous tray with regularly distributed ventilation holes in the base and sometimes the side walls. Good airflow and continuous cable support; holes assist with fastening and drainage. Commercial buildings, control systems, data rooms, light industrial installations, and general low-voltage cabling. Balanced protection, ventilation, flexibility, and support for small or medium cable bundles. Usually offers less open ventilation and load capacity than a comparable ladder tray. Pre-galvanized steel, hot-dip galvanized steel, aluminum, stainless steel, and powder-coated steel.
3 Solid-Bottom Tray Tray with a continuous, unperforated base and raised side rails. Low natural ventilation; additional spacing, covers, or thermal calculations may be required for heat-sensitive cables. Instrumentation, control, telecommunications, clean areas, and installations requiring greater shielding from debris. Provides continuous cable support, reduces small-object ingress, and helps protect delicate cables from external abrasion. Limited heat dissipation and drainage; cable separation and fill calculations are particularly important. Galvanized steel, stainless steel, aluminum, and coated steel; covers may be added where required.
4 Wire Mesh Tray Welded wire grid formed into a shallow channel, normally with a mesh base and sides. Excellent airflow and visibility; cables can be tied directly to the mesh. Data centers, telecommunications, network cabling, security systems, and short-to-medium indoor routes. Lightweight, easy to cut and modify on site, highly ventilated, and convenient for frequent cable changes. Generally less suitable for very heavy power cables or long spans unless properly reinforced and supported. Electro-zinc-plated steel, hot-dip galvanized steel, stainless steel, and epoxy or powder-coated finishes.
5 Channel Tray Small, narrow tray or channel with a single-piece body, often with a perforated base. Moderate ventilation and cable support for limited cable quantities. Branch circuits, control wiring, lighting systems, equipment connections, and short cable runs. Compact, economical, and suitable where a full-width tray is unnecessary. Limited capacity and span compared with ladder or wide perforated trays; not intended for large cable bundles. Galvanized steel, aluminum, PVC, and painted steel, depending on the installation environment.
6 Single-Rail Tray A central structural rail supports cable retainers, arms, or a narrow cable pathway. Very high airflow and good accessibility, particularly for lightweight cable groups. Rail corridors, tunnels, compact industrial routes, and selected power or control installations. Efficient use of space, low visual obstruction, and convenient access from both sides. Cable restraint and loading must be carefully designed; it is less suitable for loose, heavy, or highly congested cable arrangements. Galvanized steel, stainless steel, aluminum, and corrosion-resistant coated steel.
7 Channel-Type Wireway Enclosed or semi-enclosed rectangular channel with removable covers and cable-entry openings. Low to moderate ventilation; enclosed versions provide better protection against dust and accidental contact. Control panels, machine wiring, automation systems, switchgear connections, and localized cable distribution. Neat appearance, good cable routing control, and improved protection in compact equipment areas. Restricted heat dissipation and cable access compared with open trays; fill and derating requirements still apply. Painted or galvanized steel, stainless steel, aluminum, and flame-retardant non-metallic materials.
8 Fiberglass-Reinforced Polymer Tray Tray molded or pultruded from fiberglass-reinforced polymer, commonly with ladder or solid-bottom geometry. Ventilation depends on the selected profile; the material is electrically nonconductive. Chemical plants, wastewater facilities, offshore areas, coastal environments, and locations with severe corrosion exposure. Strong corrosion resistance, low electrical conductivity, and relatively low maintenance in aggressive environments. Material properties vary by resin system; ultraviolet exposure, fire performance, impact resistance, and support spacing require verification. Fiberglass-reinforced polyester or vinyl ester with molded-in or applied corrosion-resistant finishes.
9 Aluminum Tray Ladder, perforated, or solid-bottom tray manufactured from aluminum sections or sheet. Ventilation depends on the tray design; aluminum provides good thermal conductivity and low weight. Roof installations, transport infrastructure, marine locations, commercial buildings, and projects requiring reduced structural load. Lightweight, naturally corrosion resistant in many atmospheres, and easier to handle during installation. Lower mechanical strength than many steel designs for the same geometry; galvanic compatibility with adjacent metals must be considered. Extruded or formed aluminum, often with anodized or other protective finishes where specified.
10 Covered Cable Tray Open tray fitted with a removable or hinged cover; the tray base may be ladder, perforated, or solid-bottom. Ventilation is reduced by the cover, especially with a solid cover; airflow and heat dissipation must be checked. Outdoor routes, industrial areas, dusty locations, utility corridors, and installations needing protection from falling objects. Helps limit dust, debris, sunlight, dripping water, and accidental contact when the correct cover and installation method are used. Can increase heat retention, wind loading, weight, and installation cost; covers are not automatically equivalent to a liquid-tight enclosure. Galvanized steel, aluminum, stainless steel, and coated steel with flat, peaked, or ventilated cover options.

Selection should be verified against cable weight, fill, span, environmental exposure, temperature rise, short-circuit forces, grounding and bonding requirements, fire performance, and the electrical installation rules applicable in the project location.

Material Comparison: Steel, Aluminum, and FRP by Weight and Corrosion Resistance

Top 10 Cable Tray Types for Global Buyers

Material choice often decides a tray system’s lifetime, handling cost, and maintenance risk. Steel remains the strongest common option, with a density near 7.85 g/cm³. Aluminum is much lighter, at about 2.70 g/cm³, according to standard engineering materials data. FRP usually ranges from 1.5 to 2.0 g/cm³, depending on its resin and reinforcement.

Weight matters on crowded projects. A lighter aluminum or FRP tray can reduce lifting effort and support loads. However, strength is not identical to weight. Steel handles impact and heavy cable bundles well, while aluminum may need deeper sections or closer supports. FRP resists many chemical environments without electrochemical corrosion. That is valuable near wastewater, coastal, and process areas. Still, resin selection, UV exposure, and fire performance need careful review.

Corrosion is an expensive design concern. The NACE IMPACT study estimated global corrosion costs at about US$2.5 trillion annually, equal to roughly 3.4% of global GDP. Coated steel can perform reliably when the coating system matches humidity and salt exposure. Aluminum forms a protective oxide layer, but aggressive chemicals can still attack it. FRP avoids rust, yet it is not maintenance-free.

Field experience suggests no universal winner. That is the uncomfortable part. A low-weight tray may simplify installation but increase support requirements. A high-strength tray may add unnecessary structural weight. Buyers should compare density, span tables, corrosion data, temperature limits, and fire ratings before approving a material.

Sizing and Installation: Apply NEC 392 Fill Limits and Standard 300 mm Spans

Top 10 Cable Tray Types for Global Buyers

Sizing and Installation: Apply NEC 392 Fill Limits and Standard 300 mm Spans

Cable tray selection starts with load, cable diameter, and future capacity. The 2023 National Electrical Code, Article 392, generally limits multiconductor cable fill to 50% in applicable tray configurations. Single-conductor arrangements may require lower limits, often 40% or 30%, depending on cable size and installation conditions. Always verify the exact table before ordering.

A practical layout uses the largest cable outside diameter, not its conductor area alone. Leave room for pulling, heat dissipation, and maintenance. Crowded trays become difficult to inspect. They also expose weak planning.

NEMA VE 1-2023 emphasizes structural performance, loading, and support-span testing for cable tray systems. A 300 mm interval may suit rung, cleat, or local restraint details, but it is not a universal tray support span. Many projects need much longer structural spans, subject to manufacturer data, cable weight, seismic demands, and site conditions. This point is often misunderstood. IEC 61537:2023 also addresses mechanical performance and earthing continuity, supporting a more disciplined installation review. Engineers should check deflection, joint locations, thermal grouping, corrosion exposure, and bonding before approval. The 300 mm assumption may still need revision.

Global Buyer Checklist: IEC 61537, IP Ratings, Fire Tests, and Total Cost Metrics

Top 10 Cable Tray Types for Global Buyers

MarketsandMarkets’ 2024 Cable Tray Market report estimated the sector at about USD 4.1 billion. Growth increases procurement pressure. Buyers should compare ladder, perforated, solid-bottom, wire-mesh, and FRP trays against project conditions. IEC 61537:2023 remains a key reference for mechanical strength, electrical continuity, and system performance. Request the complete test scope, not only a compliance statement.

IP ratings require careful interpretation. IEC 60529 applies to enclosures, while an open cable tray is not automatically IP-rated. Ask whether the claimed IP protection covers the tray, cover, joints, and cable entry arrangement. Field experience shows that poorly fitted covers collect water and dust around bends. That detail is easy to miss.

Fire evidence must match the installed system. IEC 60331 mainly addresses circuit integrity of cables, not every tray assembly. For fire-resisting installations, review the tested cable, tray material, support spacing, load, and duration. Do not accept a generic “fire rated” label. Total cost should include supports, coating, freight, installation hours, corrosion inspections, replacement access, and downtime risk. A 2024 industrial construction cost outlook from Turner & Townsend noted continuing labor and material volatility across major markets. The cheapest tray often becomes expensive after delivery. I still see buyers underprice maintenance. That deserves another review.

FAQS

What does a cable tray load class indicate?

The number usually shows the required uniform load in pounds per foot. The letter identifies the tested support span. For example, class 20C represents 20 pounds per foot across six feet.

How should actual cable weight be calculated?

Include cable insulation, fittings, future additions, and possible water accumulation. Add a realistic growth allowance. Small assumptions can cause expensive corrections.

Why is support spacing important?

Wider spans usually increase tray deflection. Supports should align with bends, splices, and heavy vertical drops. A suitable load class cannot fix poor support placement.

Which tray type suits power cables?

Ladder trays suit power cables because their rungs improve ventilation and tie-down access. Keep heavier cables near support centers when practical. Access still matters.

When are solid-bottom trays useful?

Solid-bottom trays protect smaller cables from dust, dripping liquids, and debris. They can retain more heat. Review cable spacing carefully.

When should wire mesh or multi-tier trays be considered?

Wire mesh trays suit data, fiber, and low-voltage systems. Multi-tier trays separate power, control, and communication circuits. Check bending radius and available clearance.

Does an open cable tray automatically have an IP rating?

No. An open tray is not automatically enclosure-rated. Confirm whether the claim covers covers, joints, and cable entry arrangements.

What evidence is needed for fire-resisting cable tray systems?

Review the tested cable, tray material, support spacing, load, and test duration. A general fire-rated label may be insufficient. The installed system must match the tested arrangement.

What costs should global buyers include?

Include supports, coatings, freight, installation hours, corrosion inspections, access, and downtime risks. The lowest purchase price may not be the lowest total cost. Maintenance is easy to underestimate.

Conclusion

Choosing the right Cable Tray system requires balancing structural performance, installation needs, environmental conditions, and total cost. This guide explains NEMA VE 1 load classes and span requirements, then compares ten common tray types, including ladder, perforated, solid-bottom, wire mesh, channel, and other configurations. Each design offers different benefits for ventilation, cable support, accessibility, and protection.

Material selection is also essential. Steel provides strength, aluminum reduces weight and offers good corrosion resistance, while FRP is suitable for demanding corrosive environments. For sizing and installation, buyers should apply NEC 392 fill limits, confirm load capacity, and consider standard 300 mm support spans where appropriate. A global purchasing checklist should include IEC 61537 compliance, suitable IP ratings, fire-test documentation, environmental durability, shipping requirements, maintenance needs, and total cost over the product’s service life. This approach helps buyers select a safe, efficient, and economical Cable Tray solution for varied infrastructure projects.
