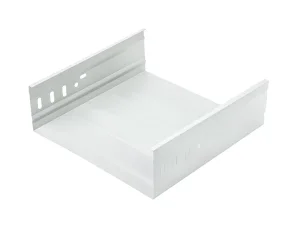

Wholesale Lightweight Tenacity Aluminium Molded Cable Tray
View Engineering Specs

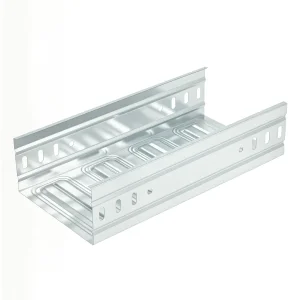

Wholesale Fireproof Pre Galvanized Powder Coated Molded Tray
View Engineering Specs
Wholesale Blue Pre Galvanized Powder Coated Molded Cable Tray
View Engineering Specs

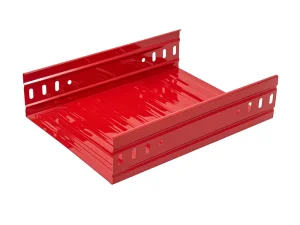

Buy Fireproof Red Pre Galvanized Powder Coated Molded Tray
View Engineering Specs
Engineering Principles of Heavy-Duty Cable Support Systems
Modern hyperscale data halls, metallurgical smelters, LNG liquefaction trains, and marine topsides generate extreme cable bundle masses that induce continuous bending moments and shear stresses. Standard lightweight cable containment fails when continuous deadweights exceed 120 kg/m over extended spans, leading to structural sag, flange buckling, and localized galvanic fatigue.

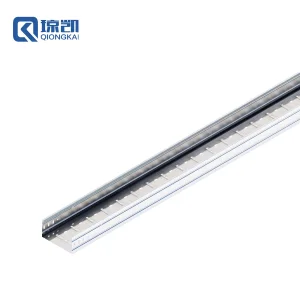

Qiongkai’s Heavy Duty Series re-engineers the cross-sectional geometry of the channel rail through precision progressive cold roll-forming. By introducing stamped continuous longitudinal stiffening ribs along the web and continuous flange curling, the sectional modulus (Zx) is enhanced by up to 35% compared to traditional flat-sheet trays without incurring redundant parasitic deadweight.
- Deflection Integrity Standard: Engineered to comfortably exceed NEMA VE 1 / IEC 61537 Class 20C standards, maintaining span deflection ratios strictly below L/200 at maximum rated uniformly distributed load (UDL).
- Short-Circuit Dynamic Resistance: Rigid side-rail construction absorbs high electrodynamic repulsion forces generated during cable fault transients up to 65 kA peak without permanent rung disconnection.
- Optimized Ventilation & Ampacity Derating: Perforated pattern geometry optimizes heat dissipation from thermal losses in dense single-core cables, reducing conductor operating temperatures and minimizing ampacity derating factors.
Metallurgical Options & Yield Strengths
Our heavy-duty profiles are fabricated using certified mill-tested structural alloys tailored for extreme operational environments:
China Factory Supply Chain & Manufacturing Power
Operating from our multi-facility manufacturing complex in Shanghai's Songjiang Port Science and Technology City, Shanghai Qiongkai Industry Co., Ltd. eliminates intermediate trading markups while offering unmatched industrial scalability.
Shanghai Port Logistics Gateway
Our strategic manufacturing base in Songjiang offers immediate transport access to Yangshan Deepwater Port and Waigaoqiao Container Terminals. Turnaround times from factory warehouse stuffing to ocean vessel departure are compressed to under 48 hours, shielding international schedules from coastal transshipment delays.
Fast Global Container RoutingDirect Mill Integration & Slitting
Direct supply agreements with primary domestic steel mills (such as Baosteel and Shougang) guarantee continuous batch availability of high-yield master steel coils. In-house precision slitting lines cut tolerances down to ±0.05 mm, preventing edge burrs and securing continuous dimensional uniformity across thousands of tray units.
Zero Scrap Inclusions GuaranteedAutomated Molded Stamping
Our plant operates 60+ heavy-duty pneumatic punch presses and continuous progressive die stamping units. Bottom panels are molded with proprietary three-dimensional reinforcing dimples and stiffening ribs, unlocking elevated load factors while conserving sheet thickness—yielding massive ocean shipping weight savings.
Up to 30% Lighter Container TareProtective Finishes & Corrosion Resistance Matrix
Selecting the correct protective finish guarantees operational longevity while preventing catastrophic containment degradation. Compare our finishes mapped to ISO 12944 atmospheric corrosivity categories.
| Finish Specification | Standards Compliance | Typical Coating Thickness | Corrosivity Category (ISO 12944) | Primary Deployment Environments |
|---|---|---|---|---|
| Pre-Galvanized (PG / GI) | EN 10346, ASTM A653 | 15 – 25 µm (Z180 – Z275) | C1 – C2 (Low Dry Indoor) | Commercial ceilings, climate-controlled IT suites, indoor distribution centers. |
| Hot-Dip Galvanized (HDG) | ISO 1461, ASTM A123 | 65 – 85 µm (Avg. > 500 g/m²) | C3 – C4 (Industrial / Coastal Urban) | Power stations, petrochemical terminals, outdoor racks, rooftop solar farms. |
| Powder Coated (Polyester/Epoxy) | GB/T 18593, ASTM D523 | 60 – 120 µm (Custom RAL) | C2 – C3 (Indoor / Functional Identification) | Fire alarm containment (Red), low-voltage IT (Blue), critical power (Yellow). |
| Stainless Steel 316 / 316L | ASTM A240, EN 10088 | Passivated Natural Oxide Barrier | C5-M / CX (Extreme Marine & Offshore) | Offshore oil & gas rigs, marine desalination, chemical washdown facilities. |
| Fiberglass Reinforced Polymer (FRP) | ASTM D3917, UL 94 V-0 | Dielectric Composite Resin Matrix | Extreme Chemical & Acid Fumes | Chlor-alkali plants, pickling baths, wastewater digesters, battery manufacturing. |
Seismic Engineering & Strut Channel Integration
Industrial installations in seismically active regions (IBC / ASCE 7 compliance zones) require more than just load-rated trays. Cable support systems must withstand lateral and longitudinal dynamic ground accelerations without unseating cables or shearing hanger connections.
Shanghai Qiongkai’s heavy-duty series trays integrate seamlessly with our proprietary 41-series strut channel architecture (41×21, 41×41, 41×62, and back-to-back 41×82 profiles). Featuring continuous inward-curling serrated flanges and reinforced gusset brackets, our bracing packages absorb multidirectional dynamic stresses during severe seismic events.
- Pre-Engineered Trapeze Hangars: Bolted modular connections eliminate on-site welding, hot-work permits, and corrosion damage to galvanized protective zinc layers.
- Direct Engineering Take-Offs: Our structural engineers review layout schematics, calculate tray fill ratios, and generate complete Bill of Quantities (BOQ) with guaranteed fitment.
NEMA VE 1 / IEC 61537 Certified
Validated load-bearing performance and electrical continuity resistance under strict third-party laboratory oversight.
DIN 4102-12 Fire Circuit Integrity
Tested functional integrity classes (E30, E60, E90) ensuring emergency power distribution survives under critical fire temperatures.
CE, UL & RoHS Environmental Audit
Complete compliance with European low-voltage directives and hazardous chemical limitations across all powder-coat resins.
Worldwide Engineering Deployments & Case Studies
From Middle Eastern desert heat to European transport arteries, Qiongkai cable support systems maintain mission-critical performance in demanding project environments.
Shanghai Hongqiao International Airport
Deployment: Corrosion-resistant CT series trunking and heavy-duty cable pathways traversing high-vibration runway tunnels and baggage substations.
Outcome: 100% on-time phased delivery across critical airport expansion schedules, zero mechanical failure across multi-year operation.
Ras Laffan LNG Expansion, Qatar
Deployment: Custom engineered SS316L and heavy-duty profiled support channels facing severe desert UV radiation, saline ambient moisture, and temperatures reaching 55°C.
Outcome: Complete metallurgy certification, seamless fitment to structural I-beams without field cutting.
Industrial Chemical Corridor, Thailand
Deployment: Pultruded FRP-lined heavy-duty steel composite cable trays engineered for outdoor chemical exposure and monsoon-level relative humidity.
Outcome: Superior mechanical deflection containment resistant to acid vapours, eliminating early corrosion cycles.
Mega Livestock Complex, Paraguay
Deployment: Value-engineered reinforced molded pre-galvanized cable trays engineered to resist continuous organic ammonia vapors on a tight CAPEX budget.
Outcome: Delivered substantial material cost savings via molded bead technology while maintaining structural integrity.
Industrial Grid Upgrades, Italy
Deployment: Bulk-order containerized shipments of Hot-Dip Galvanized (HDG) heavy-duty cable trays, ladder racks, and precision accessories conforming to EN ISO 1461.
Outcome: Seamless EU customs clearance, CE declaration compliance, and rapid trapeze assembly.
The Evolution of Modern Cable Management
Global infrastructure is demanding smarter, lighter, and more sustainable containment frameworks. Here is how Qiongkai leads the technical transition.
BIM & Digital Twin Integration
We provide full Level 2 and Level 3 Autodesk Revit and IFC parametric 3D families. EPC coordination teams detect clash points against HVAC ducts, structural members, and piping systems prior to container dispatch.
Zinc-Aluminum-Magnesium (ZM)
Advancing past traditional post-dip galvanizing, our latest roll-forming lines leverage ZM alloy steel sheets. Delivering up to 5x higher salt-spray barrier protection with remarkable self-healing edge corrosion behavior.
Decarbonized EAF Steel
Meeting client Scope 3 carbon reduction objectives through certified low-embodied-carbon electric arc furnace (EAF) steel sourcing, clean solar-assisted coil stamping, and zero chromate wash systems.
Smart Sensing Channels
Pre-slotted modular side walls engineered to accommodate distributed fiber-optic temperature sensors (DTS) and smart vibration transducers, offering predictive overheat monitoring for high-voltage circuits.
Frequently Asked Engineering Questions
Detailed answers to questions raised by project engineers, MEP estimators, and lead electrical consultants.
What distinguishes Qiongkai's Heavy Duty Series from standard perforated cable trays?
How does Qiongkai support seismic design calculations under ASCE 7 / IBC regulations?
Can non-standard profiles, widths, and depths be customized for existing brownfield installations?
What quality verification documentation accompanies international export shipments?
What are the lead times for high-volume 40-foot high-cube (HQ) container orders?
Reinforced Cable Trays, Ladder Systems & Energy-Saving Trays
Explore our specialized heavy-duty industrial configurations, including ribbed profiles, high-load ladder trays, and ventilated energy-efficient designs.

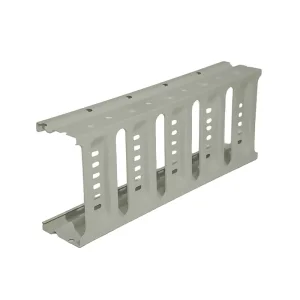

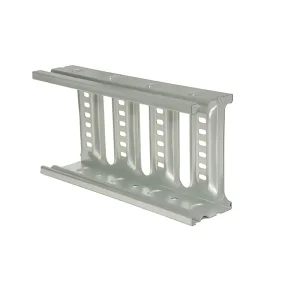

Buy Powder Coated Customizable Perforated Ladder Cable Tray
