Engineered Wire Mesh Systems: Primary Deployments
Explore our high-performance electro-galvanized, pre-galvanized, and stainless wire grid cable pathways engineered to IEC 61537 parameters.

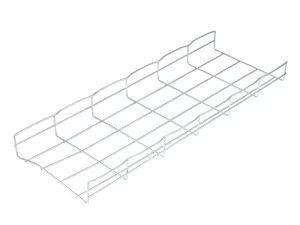

Pre Galvanized Grid & Wire Mesh Type Cable Tray
View Specifications

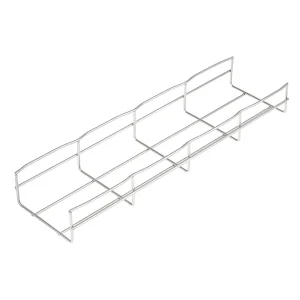

Stainless Steel Grid Wire Mesh Cable Tray
View Specifications

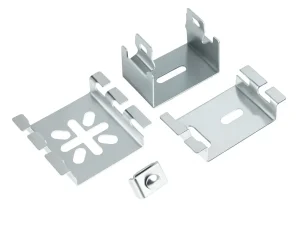

Grid Cable Tray Couplers & Modular Spare Parts
View Specifications

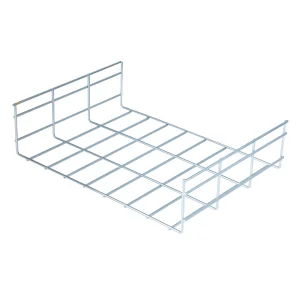

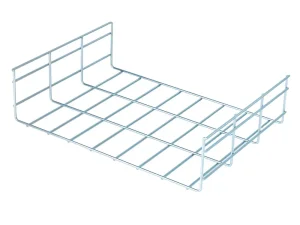

COD Pre Galvanized Grid Cable Tray 400mm
View Specifications

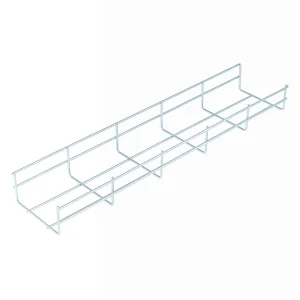

Pre Galvanized Grid Cable Tray 100mm Dimension
View Specifications

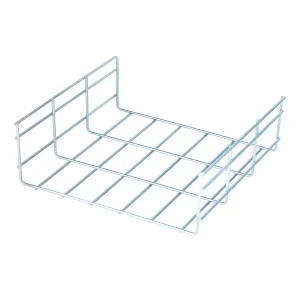

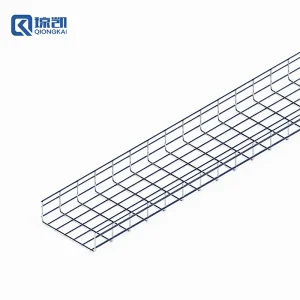

Pre Galvanized Grid Cable Tray 300mm Engineering
View Specifications
Pre Galvanized Grid Cable Tray 400mm High Capacity
View Specifications
Pre Galvanized Grid Cable Tray 200mm Pathway
View SpecificationsThe Global Evolution of Wire Mesh Cable Management
Analyzing cross-continental infrastructure shifts from rigid conduit and enclosed trunking toward open-architecture mesh basket routing.
Hyperscale Cloud & AI Data Density
With artificial intelligence clusters accelerating power draws beyond 40kW per rack, thermal stagnation poses severe risk. Open wire mesh architecture facilitates 360-degree convection, mitigating heat accumulation and lowering total data center HVAC overhead by up to 18%.
Hygienic Cleanroom Protocols
Global standards in biochemical and pharmaceutical facilities enforce washdown cleanability. Stainless steel 304 and 316 wire basket trays prevent particulate, moisture, and microbial accumulation, superseding traditional enclosed perforated channels that trap contaminants.
Industrial Automation & Agile CapEx
Modern Industry 4.0 production floors require modular cabling reconfiguration. Wire basket pathways enable point-of-use drops, field-cut directional transitions, and rapid modifications without bespoke fabrication tooling or hot-work site permits.
Shanghai Qiongkai: Direct Factory Engineering Power
Operational synergy between Songjiang Port Science & Technology City facilities and deep-water logistical hubs provides unrivaled supply continuity.
Automated Multi-Point Resistance Welding
Our 12 assembly lines deploy robotic CNC resistance grid welders executing automated joint calibration. With round-edge cross-wire welding, our baskets eliminate burrs and sharp points, ensuring zero jacket laceration during high-velocity fiber pulls.
Continuous Metallurgical Quality Control
From Q235B cold-drawn structural steel rod to marine-grade AISI 316L austenitic stainless steel, raw wire stock undergoes rigorous tensile yield verification, salt-spray chamber testing (ASTM B117), and micron-calibrated coating thickness scans before dispatch.
Shanghai Logistics Nexus
Direct positioning proximate to Yangshan Deep-Water Port and Waigaoqiao Port minimizes intermodal drayage costs. Standard export packaging incorporates heavy-gauge nested crates, vapor-corrosion inhibiting wraps, and ISO-container load density optimization.
Substrate & Surface Treatment Selection Benchmark
Precise metallurgical specification avoids premature lifecycle deterioration. Validate site environmental parameters against our certified finish index.
| Finish / Alloy Classification | Typical Micron Coating (µm) | Corrosion Category (ISO 12944) | Optimal Project Application | Operational Thermal Threshold |
|---|---|---|---|---|
| Electro-Galvanized (EG / EZ) | 12 – 18 µm (Zinc Electrolysis) | C1 – C2 (Indoor Controlled) | Mission-critical data centers, raised-floor routing, IT comms | -40°C to +120°C |
| Pre-Galvanized (PG / GI) | 15 – 20 µm (Continuous Coil) | C2 (Dry Commercial) | Commercial HVAC plenums, dropped ceilings, tenant fit-outs | -40°C to +150°C |
| Hot-Dip Galvanized (HDG) | 65 – 85 µm (Post-Weld Bath) | C3 – C4 (Industrial Exterior) | Heavy manufacturing, renewable solar plants, outdoor racks | -50°C to +200°C |
| Stainless Steel 304 (SS304) | Self-passivating Chromium Oxide | C4 (Sanitary / Washdown) | Food and beverage processing, pharmaceutical clean halls | -196°C to +550°C |
| Stainless Steel 316L (SS316L) | 2.0-3.0% Molybdenum Enriched | C5-M / CX (Offshore Marine) | Offshore oil & gas rigs, coastal desalination plants, chemical processing | -196°C to +600°C |
| Electrochemical Polishing (EP) | Mirror-Smooth Micro-Finish | Sterile Cleanroom Standard | Biotech laboratories, semiconductor photolithography suites | -196°C to +550°C |
Global Case Engineering: Verified Performance
Review engineering implementations executed across Tier IV data hubs, airport infrastructure, and specialized offshore environments.
Shanghai Hongqiao International Airport
Delivered customized corrosion-resistant CT series trunking and matching wire mesh grid infrastructure for main terminal building distribution hubs, maintaining flawless structural integrity across continuous passenger air filtration environments.
Export Infrastructure Consignments to Italy
Full container load shipments of hot-dip galvanized wire mesh trays and heavy-duty seismic channel strut supports engineered to strict European Union construction products standards, supporting infrastructure and industrial electrification.
Middle East Offshore LNG Support Solutions
Custom stainless steel 316L high-load grid pathway systems and engineered structural profiled sections delivered to Qatar offshore LNG terminals, engineered to endure high ambient salinity and extreme solar UV thermal degradation.
Strategic Trends Driving Wire Basket Pathways
Anticipating the technological disruptions governing commercial building pathways over the next decade.
Tool-Free Quick-Lock Splice Mechanics
Labor shortage across western construction markets has spurred rapid adoption of boltless spring-steel snap connectors. These reduce coupling assembly time from minutes to under 15 seconds per joint while preserving certified electrical bonding conductivity.
Integrated BIM Object Libraries & Digital Twins
Contractors mandate parametric Revit/IFC digital representations of cable pathways. Standardized wire mesh components allow accurate clash detection within complex HVAC/MEP interstitial spaces prior to procurement.
Low-Carbon Recycled Steel Sourcing
Corporate ESG directives prioritize low embodied-carbon metals. Electric arc furnace (EAF) steel production drastically curbs carbon emissions per metric ton, aligning cable containment hardware with LEED and BREEAM green building certifications.
Procurement Engineering Verification & Compliance
Ensure smooth project sign-off by addressing critical regulatory checkpoints required by electrical consultants and EPC contractors.
How do Qiongkai wire mesh cable trays comply with IEC 61537 and NEMA VE-1 standards?
Our wire mesh cable trays undergo rigorous destructive and non-destructive load testing strictly conforming to IEC 61537 and NEMA VE-1 protocols. Test scenarios verify safe working loads (SWL) over standard spans (1.5m to 3.0m) while monitoring maximum midpoint deflection limits. Test certificates and engineering calculation reports are provided with commercial submittals.
What are the key differences between Pre-Galvanized, HDG, and Stainless Steel in wire baskets?
Pre-galvanized (PG) wire uses pre-treated mill wire stock ideal for low-humidity commercial ceiling spaces. Hot-dip galvanized (HDG) trays are batch-dipped post-welding, leaving no exposed cut ends and forming a 65-85µm protective alloy layer for outdoor industrial installations. Stainless steel (SS304/SS316L) contains chromium and nickel (plus molybdenum in 316L) to form a self-repairing passive oxide film, ideal for food processing, cleanrooms, and coastal marine environments.
How is electrical continuity (grounding) guaranteed without specialized grounding jumpers?
Electrical continuity is verified under IEC 61537 Section 11. When assembled using our certified couplers or fast-splice clamps torqued to specified values, joint resistance measures well below 50 mΩ across connections, allowing the wire mesh assembly to serve reliably within protective earthing networks.
Can Qiongkai manufacture bespoke wire diameters, tray heights, and grid widths?
Yes. Operating three production facilities with over 60 heavy-duty manufacturing machines and 12 assembly lines in Shanghai, we regularly fabricate customized side depths (from 35mm to 150mm), wire gauges (3.8mm to 6.0mm), and widths up to 1000mm, backed by tailored brackets and mounting accessories.
How are wire mesh cable trays safely modified on job sites for elbows, tees, and reducers?
One of the primary cost advantages of wire basket pathways is field adaptability. Using specialized offset side-cutters, installers cut specific grid wire segments, bend the tray to the required radius (90-degree elbows, tees, or elevation offsets), and clamp the seam using standard splicing plates—eliminating the need for custom factory-molded fittings.
Specialized Wire Mesh & Basket Grid Series
Complete your Bill of Quantities (BOQ) with specialized stainless steel lines, micro-profile conduits, and heavy basket configurations.
Pre Galvanized Grid Cable Tray 500mm High Volume
View Specifications
Pre Galvanized Grid Cable Tray 100mm × 50mm Profile
View Specifications
Stainless Cable Tray 50mm Compact Pathway
View Specifications

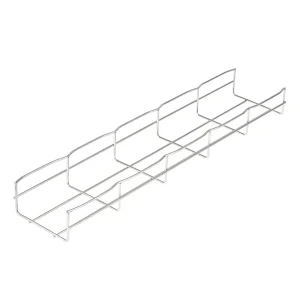

Stainless Grid Cable Tray 100mm Clean Architecture
View Specifications

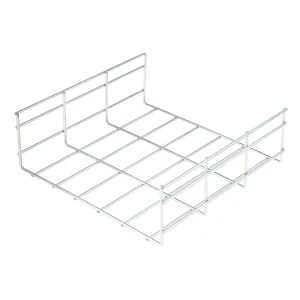

Stainless Wire Mesh Cable Tray 300mm Corrosive Proof
View Specifications

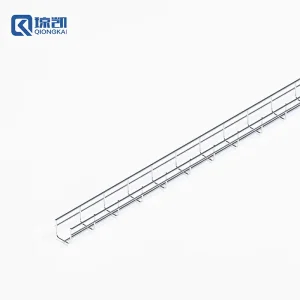

GI Galvanized Wire Mesh Cable Tray 50×50 Ultra-Slim
View Specifications

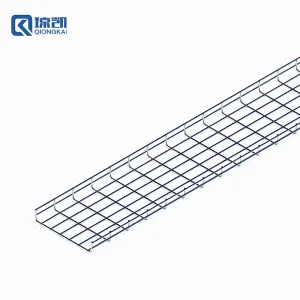

Pre-Galvanized Grid Cable Tray 300×50 Low-Profile
View Specifications
