Direct Industrial Manufacturing • AS/NZS Standards

Cable Tray Accessories Supplier & Factories for Sydney

Precision-engineered couplers, brackets, fittings, and containment components engineered for New South Wales commercial, mission-critical, transport, and coastal infrastructure.

Request Project Take-Off

Essential Containment Accessories • Sydney Project Standard Stock

Pre-galvanized and modular interconnection components manufactured to mill-grade tolerances, ready for rapid dispatch to Greater Sydney construction zones.

14-18Days
Shanghai to Port Botany Transit
AS/NZS3013
Fire-Rated Mechanical Integrity
Z275/HDG85µm
Sydney Coastal Salt Spray Shield
100%
BIM LOD-400 Component Matching
Industrial & Commercial Landscape

Navigating Greater Sydney’s Multi-Billion Dollar Infrastructure Supercycle

The construction and electrical contracting environment in Sydney is undergoing unprecedented structural expansion. Driven by milestone public investments—such as Sydney Metro West, the Western Sydney International (Nancy-Bird Walton) Airport precinct, and high-density hyperscale data center clusters across Eastern Creek and Macquarie Park—electrical containment systems face stringent mechanical scrutiny.

In New South Wales, electrical contractors cannot afford on-site rework or mechanical failures. Cable tray systems are only as dependable as their connecting accessories: splice plates, riser joints, trapeze hold-down brackets, and thermal expansion joiners. The market demands accessory lines that integrate seamlessly with high-yield structural framing, maintaining continuous grounding resistance below 0.05 ohms and handling cable loads exceeding hundreds of kilograms per linear meter.

Sydney Localized Compliance Framework

Cable accessories supplied into New South Wales capital works must navigate stringent Australian and New Zealand Standards:

  • AS/NZS 1170.4 (Earthquake Actions in Australia): Requires seismic restraint validation for overhead electrical pathways, demanding certified bracket yield stress under dynamic shear forces.
  • AS/NZS 3000 (Wiring Rules): Mandates continuous electrical continuity and burr-free deburred edge profiles across all accessories to protect conductor insulation during pulling operations.
  • AS/NZS 4680 & AS 1397: Prescribes exact zinc coating densities to counter micro-climatic deterioration across Sydney's coastal sea spray corridors.

Tailored Engineering for NSW Project Environments

From saline harbors to mission-critical colocation vaults, selecting the correct metallurgical grade and structural design avoids premature site degradation.

Coastal & Harbourfront Exposure

Projects within 5 km of Port Jackson, Botany Bay, and Sydney Harbour encounter high atmospheric salinity (ISO 9223 Category C4/C5-M). Marine air accelerates galvanic corrosion on untreated stamped accessories.

  • Hot-Dip Galvanized (HDG): Accessories post-treated to 65–85 µm zinc layer thickness.
  • Marine-Grade SS316: Recommended for outdoor rooftop HVAC cable raceways in seaside Barangaroo and Circular Quay developments.

Western Sydney Data Hall Corridors

The Western Sydney corridor (Eastern Creek, Blacktown, Horsley Park) is Australia’s primary data center nexus. These facilities require ultra-clean, electromagnetic-screened routing accessories.

  • Zero Zinc Whiskers: Specialized powder coating and high-integrity electro-galvanizing eliminate conductive zinc flakes inside raised-floor air plenums.

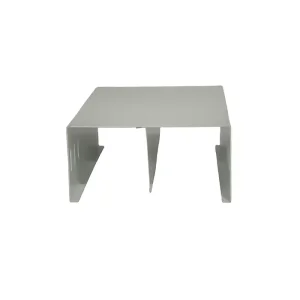

  • Partition Separators: Snap-in dividers isolate high-voltage power feeds from Cat6A/fiber optic channels to minimize crosstalk.

Subterranean Rail & Tunnels

Sydney Metro tunnel cross-passages and underground platforms demand 120-minute fire-retention compliance (AS/NZS 3013) to ensure emergency lighting and ventilation integrity.

  • Heavy-Gauge Carbon Steel: Connectors stamped from ≥2.0 mm structural steel maintain structural geometry under thermal stress.
  • Vibration-Proof Hardware: Bridge screws with serrated flange locknuts prevent loosening caused by daily train aerodynamic shock waves.

Technical Matrix: Cable Tray Accessory Specification Guide

Cross-standard correlation between Australian Standards (AS/NZS), International IEC 61537, and American NEMA VE-1 certifications.

Accessory Classification Material & Alloy Grade Surface Treatment Standard Sydney Atmospheric Class Recommended Project Typology
Straight Couplers & Reducers Commercial Steel Q235B / Cold-Rolled SPCC Pre-Galvanized (AS 1397 Z275 ≥20µm) ISO C1 - C2 Commercial Office Towers, High-Rise Residential, Sydney CBD
Seismic Hold-Down Clamps Structural High-Strength Carbon Steel Q355B Hot-Dip Galvanized (AS/NZS 4680 ≥65µm) ISO C3 - C4 Western Sydney Airport, Rail Sub-stations, Heavy Logistics
Wire Mesh Splice Washers Low Carbon Steel Rod / Austenitic Stainless Electro-Zinc Coated (EN 12329) or SS304 ISO C1 - C2 Macquarie Park Hyperscale Data Halls, Cloud Centers
Marine Trapeze Brackets Austenitic Stainless Steel Grade 316 / 316L Electropolished / Acid Pickled Passivation ISO C5-M Extreme Port Botany Terminals, Desalination Plants, Harbour Tunnels
Internal Trunking Partitions Continuous Galvanized Sheet (Ribbed Design) Pre-Galvanized or Powder-Coated (RAL 5015) Controlled Indoor Mixed Voltage Routing, Industrial Automation, Distribution Hubs
Require precise structural calculations or custom deflection profiles according to NEMA VE-1 / AS/NZS load classes?
Download Load Span Matrix
Direct Tier-1 Factory Advantage

Factory Automation Direct from Shanghai: Scalable Capacity for Australian Tier-1 EPCs

Sydney electrical wholesalers and commercial contractors often face elevated local supply costs, inventory shortages, and prolonged factory lead times from intermediaries. As an integrated manufacturer operating across 3 primary facilities spanning over 30,000 m² in Shanghai’s industrial belt, Shanghai Qiongkai Industry bridges the gap between massive manufacturing scalability and rapid delivery to New South Wales.

Our strategic proximity to Waigaoqiao and Yangshan deep-water ports allows direct, scheduled maritime container shipments directly to Port Botany, Sydney. The regular 14- to 18-day sea transit ensures turnkey project schedules remain on track without costly demurrage or site installation delays.

  • Scale Advantage: 12 automated roll-forming lines and over 60 heavy-duty hydraulic stamping presses delivering up to 1,200 metric tons of cable tray containment systems per month.
  • Tooling Precision: In-house CNC die tooling allows non-standard profile accessory fabrication (custom radius risers, offset reducers, bespoke cantilever brackets) within 5 working days.
  • Consolidated Container Packing: Accessories are pre-sorted, palletized with waterproof shrink-wrapping, and systematically tagged with project-level QR-barcodes for simplified on-site staging.

Quality Control & Traceability Protocol

Every batch destined for Australia undergoes rigorous pre-shipment quality verification in accordance with ISO 9001 quality regimes:

ASTM B117
1000-Hour Salt Spray Testing for High-Corrosion Finishes
EN 10204 3.1
Complete Mill Test Certificates (MTC) Chemical & Tensile
Coating Gauge
Electromagnetic Non-Destructive Micron Thickness Verification
Deburring Check
100% Manual Touch Inspection to Prevent Cable Sheath Stripping

Future Roadmap: Smart, Modular & Sustainable Cable Containment

Adapting to rising Sydney labor rates through engineered assembly simplification and low-embodied-carbon production techniques.

Boltless "Snap-Fit" Interconnections

With electrical labor costs in Sydney among the highest globally, on-site installation speed dictates contractor margin. Our next-generation accessories prioritize tool-free interlocking connectors.

By eliminating up to 60% of traditional nut-and-bolt fastenings, overall installation velocity on large-scale horizontal tray runs increases by over 45%.

BIM LOD 400 Native Library

Modern Australian commercial builds rely heavily on Autodesk Revit for spatial clash detection. Our accessories line provides native BIM families with parametric properties.

Contractors can drop exact dimensional couplers, seismic clamps, and vertical dropouts into digital twins, eliminating spatial clashes above suspended ceilings before products arrive on site.

Green Steel & Recycled Content

Infrastructure NSW and major institutional developers are establishing strict embodied carbon caps for Green Star building certification.

Our raw material pipeline incorporates electric arc furnace (EAF) carbon steel with verified recycled scrap input, lowering carbon footprints without compromising structural yield strengths.

Comprehensive Cable Raceway & Support Accessories

Complete structural systems including heavy-duty elbows, support brackets, slotted channels, trunking partitions, and fasteners.

Technical & Procurement FAQ for the Sydney Electrical Market

Direct answers for project engineers, procurement specialists, and tier-one electrical estimators.

How do your cable tray accessories comply with Australian Standard AS/NZS 3013 for fire-rated circuits?
Our fire-rated accessories are stamped from structural carbon steel with a minimum gauge thickness of 2.0 mm and combined with high-tensile grade 8.8 fastening hardware. When installed in conjunction with fire-rated cables, the mechanical containment system maintains electrical circuit integrity for up to 2 hours at elevated temperatures up to 1050°C (WS52W classification according to Appendix C of AS/NZS 3013). Mill test certificates and independent destructive furnace test reports are available on an order-by-order basis.
What is the standard lead time for a full container load (FCL) delivered to Sydney's Port Botany?
Typical manufacturing cycles for standard pre-galvanized or hot-dip galvanized accessories range between 10 to 14 calendar days across our three Shanghai factories. Deep-water vessel transit from Shanghai (Waigaoqiao/Yangshan) directly to Port Botany (Sydney) typically takes 14 to 18 days depending on shipping line schedules. In total, EPCs can comfortably schedule door-to-site project arrivals within 4 to 5 weeks from technical drawing sign-off.
How do you protect pre-galvanized components from "white rust" (wet storage stain) during ocean shipping?
Pre-galvanized components are particularly vulnerable to damp maritime atmosphere when stored in enclosed containers. We employ a triple-barrier preservation methodology: (1) All raw coils utilize environmentally friendly chromate-free chemical passivation; (2) Finished components are nested with interleaving moisture-wicking film; and (3) Pallets are vacuum-wrapped with continuous industrial polythene film containing active silica gel desiccant packs to prevent condensation formation inside ocean containers.
Can Qiongkai manufacture customized accessory dimensions and non-standard bends for Sydney Metro retrofits?
Yes. Due to historical architectural constraints in Sydney CBD buildings and tight rail tunnels, standard 300 mm or 450 mm radius fittings often fail to clear existing plumbing and HVAC services. Our factory houses in-house laser cutting, robotic welding cells, and dedicated press-brake tooling capable of fabricating custom-radius horizontal elbows, offset reducers, step-down joiners, and bespoke hanging brackets directly from client-supplied CAD/Revit DWG files.
What are the electrical earthing and continuity properties across accessory joints?
Per AS/NZS 3000 and IEC 61537 Section 11, cable tray assemblies must maintain low electrical resistance to function safely as an equipotential bonding conductor or to safely direct fault currents. Our straight joiners and wrap-around couplers incorporate proprietary serrated indentations and knurled locking fasteners that pierce the passive surface oxide/zinc layer upon specified torque application, consistently delivering path resistance below 0.033 ohms across connected junctions without requiring separate copper jumper braids.
Direct-From-Manufacturer Efficiency

Streamline Your Greater Sydney Containment Supply

Send our engineering team your Bill of Quantities (BOQ), single-line diagrams, or takeoff schedules. Receive fully itemized, standard-compliant technical proposals and factory-direct pricing within 24 hours.
