Pre-engineered accessories manufactured to ensure continuous equipotential bonding, thermal expansion compensation, and high-load mechanical rigidity.
Precision-formed snap-on and flanged tray covers delivering IP40/IP44 ingress shielding, UV defense, and mechanical impact resistance.
View Product Specs
Heavy-gauge straight splice plates, expansion couplers, and grounding hardware tested to NEMA VE 1 and IEC 61537 continuity thresholds.
View Product Specs
Factory-welded or boltless multi-way routing junctions engineered with standardized bending radii to prevent cable sheath stress during high-amperage pulls.
View Product Specs
Complete fastening kits including serrated flange bolts, hold-down clips, and vertical adjustable hinges for multi-elevation power distribution routes.
View Product SpecsUnderstanding the strict technical and environmental parameters shaping cable containment procurement in the Eastern Republic of Uruguay.
Uruguay has achieved international acclaim by generating over 95-98% of its annual electricity from wind, hydroelectric, biomass, and solar PV. Modernizing the national transmission network under UTE (Administración Nacional de Usinas y Trasmisiones Eléctricas) demands high-capacity cable routing fittings capable of enduring elevated harmonic loads, high outdoor solar irradiation, and rapid step-up substation switching stresses.
Industrial giants such as the UPM Paso de los Toros and Montes del Plata cellulose mills represent multibillion-dollar export engines. These processing complexes contain chlorine dioxide bleaching rooms, caustic soda handling, and high-temperature evaporation zones where conventional pre-galvanized brackets rapidly degrade. FRP (fiberglass) and SS316 cable tray accessories are paramount to prevent catastrophic outages.
The Port of Montevideo serves as a primary logistics corridor for the Southern Cone (Mercosur). Concurrently, Uruguay's technology parks, like Zonamerica, and hyperscale data center projects require zero-downtime structured cabling infrastructure. Here, electro-galvanized (EG) and powder-coated cable trunking and cable tray accessories guarantee cleanroom air distribution, high wire densities, and EMI shielding.
All Qiongkai cable tray accessories supplied to Uruguay, Argentina, and Brazil are manufactured in full alignment with international electrical safety standard IEC 61537:2006 (Cable management – Cable tray systems and cable ladder systems) and NEMA VE 1 / NEMA VE 2 guidelines for structural integrity, electrical continuity, and safe installation practice.
Why the modern electrical engineering paradigm treats cable tray accessories not as auxiliary hardware, but as safety-critical structural nodes.
Under short-circuit fault conditions, magnetic repelling forces between heavy multi-conductor cables can reach several kilonewtons per linear meter in fractions of a second. Poorly stamped or undersized splice plates shear, ripping cables from ladder runs and causing severe arc-flash hazards. Qiongkai accessories utilize structural carbon steel with optimized thickness (1.5mm to 3.0mm) and engineered gusset geometry to securely absorb high-energy mechanical shocks.
A cable tray run must function as an Equipment Grounding Conductor (EGC) in accordance with NFPA 70 (NEC) Article 392 and IEC 61537 Section 11. Our splice connectors and transition fittings feature serrated bonding teeth and precision-punched carriage-bolt slots that pierce surface oxidation and deliver joint electrical impedance below 0.005 ohms, eliminating ground faults without requiring costly external copper bonding jumpers at every splice.
In regions like Durazno or Salto with extreme temperature differentials between winter cold snaps and summer heat spikes, continuous steel tray runs expand and contract significantly. Qiongkai supplies engineered expansion splice plates featuring slotted sliding holes with precision Delrin/Teflon friction washers, preventing buckling of the side rails and maintaining tray alignment over 30-meter continuous outdoor installations.
Uruguay's southern coastal rim along the Río de la Plata and Atlantic Ocean presents ISO 9223 C4 to CX marine salinity, combined with high humidity. Selecting the appropriate metallurgy—from continuous pre-galvanized (PG) Z275 for climate-controlled equipment rooms, to batch Hot-Dip Galvanized (HDG) ISO 1461 with minimum 65–85 µm zinc thickness, up to Marine Grade SS316—is the single greatest factor in overall infrastructure lifecycle ROI.
Comprehensive engineering reference to ensure compliance with site environmental classifications, fire endurance, and expected service life.
| Material / Treatment | Standards Compliance | Corrosion Class (ISO 9223) | Yield Strength & Rigidity | Recommended Uruguay Application Scenarios |
|---|---|---|---|---|
| Pre-Galvanized Steel (PG / GI) | EN 10346 / ASTM A653 (Z180 - Z275) | C1 - C2 (Dry Indoor) | High (250–320 MPa) | Commercial buildings, Montevideo server rooms, conditioned substation switchgear rooms. |
| Hot-Dip Galvanized (HDG) | ISO 1461 / ASTM A123 / AS/NZS 4680 | C3 - C4 (Industrial / Outdoor) | Superior (350+ MPa) | High-voltage substations, rooftop solar racking, wind turbine nacelle and tower raceways, coastal port sheds. |
| Fiberglass Reinforced Polymer (FRP) | ASTM D3917 / UL 94 V-0 / ASTM E84 | C5 - CX (Chemical & Extreme) | Non-magnetic, resilient flexure | UPM & Montes del Plata pulp mills, chemical loading jetties, acid pickling lines, brine storage facilities. |
| Marine Stainless Steel (SS316/316L) | AISI / ASTM A240 / EN 10088-2 | C5 - CX (Chloride Marine) | Highest yield & impact toughness | Offshore platform connections, Port of Montevideo docks, marine naval vessels, pharmaceutical washdown areas. |
| Architectural Powder Coated (Epoxy/Polyester) | ISO 12944 / Qualicoat Class 1 & 2 | C2 - C3 + Color Coding | High Impact Resistance | Hyperscale data center raceways (red/blue circuit segregation), industrial production visual line identification. |
How Qiongkai supports EPC contractors with custom-engineered bracketry and routing solutions across four critical domestic sectors.
Uruguay's northern and central regions feature intense ultraviolet exposure and open-range wind shear. PV farm collector systems require cable tray covers that withstand 120 km/h gusts without dislodging. Qiongkai designs heavy-duty wrap-around hold-down clamps and peaked covers that prevent rain pooling and dirt buildup, preserving MV cable sheaths over 25-year PPA contract lifespans.
The Montevideo Port expansion and coastal logistics parks in Canelones and Colonia handle constant moisture loaded with marine salts. In these environments, ordinary galvanized screws rust within months, creating galvanically mismatched hot spots. We supply complete marine-grade hardware sets featuring hot-dip galvanized grade 8.8 carriage screws and SS316 nylon-insert locking nuts for vibration-proof maritime stability.
Facilities operated by Conaprole, meat packers in Tacuarembó, and forestry processing mills in Río Negro must adhere to strict sanitation and chemical washdown standards. High-pressure steam cleaning with chlorinated sanitizers strips paint and zinc coatings. Qiongkai supplies electro-polished wire mesh accessories and passivated SS304/316 perforated tees and reducers that inhibit bacterial harborage and resist caustic cleaners.
Data facilities demand high cable fill factors, flawless bend radii to preserve Cat6A and fiber optic signal integrity, and Zero Halogen (LSZH) cable compatibility. Our powder-coated perforated trays, drop-out radiuses, and modular waterfall accessories eliminate cable pinch points, allowing rapid reconfiguration as server racks scale up.
Explore our complete engineered lineup—from galvanized elbows and cantilever brackets to corrosion-immune FRP systems and reinforced ladder trunks.
Precision cold-stamped 90-degree elbows offering smooth radius transitions for control and instrumentation cables, preventing jacket abrasion.
View Product Specs
Gusset-reinforced heavy-duty L-brackets tailored for wall-mounting cable runs in high-density commercial shafts and utility tunnels.
View Product Specs
Engineered branch tees with integrated coupling flanges, optimizing labor time during complex multi-directional conduit and tray routing.
View Product Specs
Vibration-resistant M6/M8 carriage bolts engineered with square under-head necks to ensure rapid one-wrench fastening in tight riser shafts.
View Product Specs

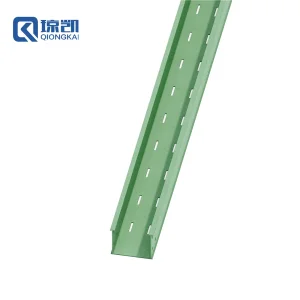

Pultruded vinyl ester/polyester resin composite cable tray immune to acidic fumes, salt mist, and electro-magnetic interference.
View Product Specs
Hybrid ventilated design pairing rung strength with perforated plate protection, custom coated in electrostatic epoxy for color-coded infrastructure.
View Product Specs
Fully enclosed pultruded fiberglass trunking for coastal river crossings and high-sulfur agricultural processing environments.
View Product Specs
Engineered with longitudinal reinforcing ribs on side rails and base, boosting safe working load capacity across 3-meter to 6-meter support spans.
View Product SpecsStrategic advancements in intelligent cable routing, sustainable metallurgy, and digital twins driving productivity in Latin American industrial construction.
Next-generation tray accessories are increasingly designed with clips and routing channels for continuous Distributed Temperature Sensing (DTS) optical fiber cables. This enables operators in Uruguay’s high-power wind corridors to monitor real-time thermal spikes along cable joints, preventing catastrophic overheating in underground substations before an outage occurs.
Global project financiers and international EPC consortia are standardizing on Environmental Product Declarations (EPD). Qiongkai is advancing its manufacturing operations by utilizing electric arc furnace (EAF) low-carbon steel, combined with clean-flux zinc galvanizing baths, lowering embedded carbon by up to 34% per metric ton of fabricated containment.
Labor productivity in remote construction zones (such as rural Uruguayan transformer stations) is a decisive project cost driver. Our new generation boltless, snap-lock splice connectors reduce assembly time by over 60%, while our complete BIM / Revit parametric component library allows precision clashing resolution before components ship from the factory floor.
A streamlined overseas procurement model from Shanghai Songjiang manufacturing to direct discharge at the Port of Montevideo.
Submit your electrical single-line diagrams or CAD layouts. Our dedicated structural engineering team provides verified accessory schedules, load deflection calculations, and exact fitting counts within 24–48 hours.
Operated across 3 factories with 12 automated roll-forming and stamping lines. Tight manufacturing tolerances ensure rapid on-site bolt hole alignment and flat seam coupling without field grinding.
Export packaging features vapor-corrosion-inhibiting (VCI) plastic wrap, steel strapping, reinforced wooden crates, and structural pallets engineered to withstand 35–45 days of maritime container transit without white rust.
Complete documentation provided, including Mill Test Certificates (MTC 3.1), Certificates of Origin, ISO 9001/14001 compliance sheets, and customized HS code classifications for rapid Uruguayan customs clearance.
In-depth responses covering engineering standards, corrosion defense, containerized logistics, and on-site assembly.
Our complete range of cable tray accessories complies strictly with IEC 61537 (Cable management – Cable tray systems and cable ladder systems) and NEMA VE 1 / VE 2 standards. This covers mechanical safe working load (SWL) verification, impact resistance, and equipotential bonding continuity across joints. For clients requiring seismic qualification, our strut channels and bracing assemblies are tested to international seismic vibration criteria, making them fully compliant with Uruguayan industrial, utility, and municipal tender specifications.
For outdoor substations and coastal industrial hubs located within 15 km of the coastline or the Río de la Plata estuary, we strongly recommend Hot-Dip Galvanized (HDG) after fabrication conforming to ISO 1461 / ASTM A123. This hot-dip process provides a sacrificial zinc-iron alloy coating with an average thickness of 65 to 85 microns, offering 30+ years of maintenance-free service. In hyper-saline or high-chlorine splash areas, Grade 316 Stainless Steel or Vinyl Ester FRP is the required standard to completely prevent localized pitting.
Yes. When installed using our precision carriage screws with serrated flange locknuts torqued to specified values (minimum 25 N·m for M8 hardware), the joints achieve electrical resistance well below the maximum 0.05-ohm threshold mandated by IEC 61537 Section 11. This guarantees equipotential bonding throughout the entire tray run, allowing the containment to function as a verified equipment grounding conductor without requiring costly auxiliary copper bonding jumpers at every connection.
Yes. In addition to standardized 90°, 45°, and 30° horizontal bends, tees, and crosses, our factory operates high-precision CNC laser-cutting and hydraulic press brakes capable of producing custom angles, variable-height reducers, and offset splice plates. If your facility has non-standard beam spacings or requires custom side rail heights (such as 120mm, 150mm, or 200mm heavy rungs), our tooling department can quickly produce tailored components from your CAD or BIM drawings.
Standard fabrication lead times range between 15 and 25 days depending on the project volume and required finish. Maritime shipping from Shanghai / Ningbo ports to the Port of Montevideo typically takes 35 to 42 days via direct ocean freight services. Our logistics department coordinates container consolidation, moisture-barrier palletizing, Bill of Lading documentation, and customs export certificates to ensure seamless arrival and clearance at Uruguayan customs.
