Pre-Galvanized Slotted Channel & Angle System for Korean Fabs
Continuous slotted cold-formed profile ensuring millimetric versatility for overhead cable pathways in cleanrooms and modular mezzanine grids.
Explore Slotted Channel
Precision Modular Framing
Core Modular Strut & Bracket Solutions for Korea Industrial Builds
High-yield pre-galvanized framing channels, precision bracketry, and custom-formed angle sections designed for rapid mechanical and electrical containment across Gyeonggi-do and Chungcheong industrial belts.
Pre-Galvanized L-Type Cantilever Bracket & Structural Arm
Reinforced gusset design providing high moment resistance for heavy power cable ladders mounted directly onto steel columns or concrete core walls.
Explore L-Brackets
Non-Perforated Heavy Angle Iron for Primary Busduct & Tray Trapeze
Solid structural profile offering uncompromising deflection control for continuous high-amperage feeder cabling across multi-tiered racking systems.
Explore Angle Iron
Pre-Galvanized Precision Stamped Metal Enclosure & Terminal Fixture
Multi-purpose cold-pressed forming bracket engineered for specialty electrical compartmentalization, junction isolation, and localized tray junctions.
Explore Stamped Units
Macro Economic Analysis
South Korea’s Industrial Landscape: The Demand for Next-Gen Containment
The Republic of Korea stands as a global technological powerhouse. Driven by the ambitious "Mega Semiconductor Cluster" initiatives spanning Yongin, Pyeongtaek, and Icheon, alongside rapid capital investments in EV battery gigafactories (LG Energy Solution, Samsung SDI, SK On), modern industrial infrastructure demands unmatched structural fidelity.
Semiconductor Mega-Fabs
Cleanroom environments across Gyeonggi-do demand zero particulate shedding, precise vibration mitigation, and high electro-galvanized/powder-coated purity to eliminate airborne molecular contamination (AMC) near photolithography and wafer-handling tracks.
EV Battery Gigafactories
Facilities in Ochang, Cheongju, and Pohang run continuous chemical mixing, coating, and cell-assembly suites. Supporting cable tray runs require high corrosion resistance against electrolytes, combined with extreme fire-retardant structural C-channels.
Shipbuilding & Marine (Offshore)
Shipbuilders in Ulsan and Geoje construct the world's most advanced LNG carriers and floating production units. Here, ISO 12944 C5-M and CX marine environments necessitate hot-dip galvanized steel (>85µm) or marine-grade 316L stainless steel framing.
20+
Years of Manufacturing
Continuous roll-forming & stamping excellence since 2005.
12 Lines
Automated Production
Precision cold roll-forming with online automated punching.
50,000 t
Annual Steel Throughput
Supplying heavy tier-1 EPC infrastructure contracts worldwide.
100%
KEC & Seismic Verified
Dynamic load-tested to meet KOSHA and MOIS seismic criteria.
Global Engineering Standards
Comprehensive Industrial Solutions & Material Science
Electrical cable tray support systems are the non-structural backbone of industrial assets. A failure during seismic events, thermal expansion, or continuous cyclic load induces massive production halts. We engineer our support architectures around rigid FEA (Finite Element Analysis) simulations, structural steel kinematics, and localized metallurgical coatings.
| Material / Treatment System | Yield Strength (MPa) | Corrosion Class (ISO 12944) | Applicable Korean Specification | Typical Project Deployment |
|---|---|---|---|---|
| Pre-Galvanized Steel (GI) Coating: Z180 - Z275 |
250 - 330 MPa | C1 - C2 (Dry Indoor) | KS D 3506 / KEC 232.81 | Sub-fab clean plenum spaces, commercial IT risers |
| Hot-Dip Galvanized (HDG) Post-fabrication ASTM A123 / ISO 1461 |
300 - 450 MPa | C3 - C4 (Industrial Outdoor) | KS D 3512 / KS D 8308 | Chemical corridors, outdoor utility racks, cooling towers |
| Epoxy / Polyester Powder Coated RAL Standard (Blue 5015, Grey 7035) |
Base metal dependent | Chemical Barrier + C3 | KEC Color-Coded Segregation | Circuit identification (Data, Medium Voltage, Control) |
| Austenitic Stainless (SS304/SS316L) Passivated & Pickled |
205 - 520 MPa | C5-M / CX (Extreme Marine) | KS D 3705 / KOSHA Chemical | Ulsan offshore platforms, battery cathode slurry suites |
| Seismic-Hardened 41x41 / 41x82 Strut Serrated Flange Profiles |
≥ 350 MPa High-Ten | All coatings available | MOIS Seismic Order / NFPA 13 Equiv. | High-rise seismic trapeze, primary emergency lines |
1. Deflection Kinematics
Tested under span-to-depth ratios according to NEMA VE-1 and IEC 61537, ensuring span deflection does not exceed L/200 under maximum calculated cable weight and wind loads.
2. Seismic Bracing Dynamics
Multi-directional sway brace attachments absorbing lateral and longitudinal kinetic moments, mitigating resonant structural coupling during earthquake tremors.
3. Electrochemical Compatibility
Elimination of galvanic corrosion through dielectric isolation accessories, customized hardware plating, and passivated stainless fastener integration.
Regulatory Verification
Localized Compliance: Navigating KEC, KS & KOSHA Codes
Supplying critical engineering products into South Korea requires uncompromising adherence to local technical statutory guidelines. Our support systems align directly with Korean standard bodies.
Korea Electrotechnical Code (KEC)
Since the comprehensive adoption of KEC replacing traditional Japanese-influenced electrical regulations, cable tray grounding continuity, bonding resistance (<0.1Ω), and fire propagation separation require verified test certification across all steel channels.
KS C 8464 & KS D Standards
Our raw cold-rolled coils are procured with mill test certificates conforming to KS D 3506 (Galvanized Steel) and KS D 3512. Tray bracket geometry aligns with Korean installation practices for standardized bolt pitches and M10/M12 hardware compatibility.
KOSHA & MOIS Seismic Directives
Following the Gyeongju and Pohang seismic events, South Korea’s Ministry of the Interior and Safety (MOIS) and KOSHA enforced non-structural component seismic bracing. Our channels include serrated channel flanges to prevent slip under dynamic shock.
Field Deployments
Specialized Korean Project Application Scenarios
From deep subterranean utility tunnels to complex cleanroom ceilings, our systems operate reliably across prominent Korean industrial hubs.
Pyeongtaek & Yongin, Gyeonggi-do
Semiconductor Cleanroom Sub-Plenums
High-density trapeze ceiling grids supporting thousands of instrumentation and fiber runs directly above gas abatement lines. Zero-burr precision edges prevent cable jacket abrasion.
Configuration: Pre-galvanized slotted channels (41x41x2.5mm) with dust-resistant nylon channel closures & vibration-damped spring nuts.
Ulsan & Geoje Shipyards
Offshore Marine Racking Systems
Severe atmospheric saline exposure combined with continuous engine vibration. Modular stainless steel 316 and thick HDG frames withstand salt-fog cycles exceeding 1,500 hours.
Configuration: Custom welded hot-dip galvanized L-brackets with 100µm average zinc bath immersion and SS316 clamp assemblies.
Cheongju & Ochang Battery Hubs
Cathode Slurry & Cell Assembly Containment
Vapor-tight powder-coated cable trays (RAL 5015 Blue) separating high-voltage buslines from auxiliary sensor feeds. Acid-resistant top coats ensure integrity against solvent fumes.
Configuration: Molded pre-galvanized steel reinforced with thermo-set epoxy resin, mounted on seismic back-to-back 41x82 struts.
Sangam & Incheon Digital Media City
Hyperscale AI Data Center Infrastructure
High-density server halls requiring overhead cable runway and ladder racks capable of carrying heavy, layered Category 6A and multi-core fiber bundles without heat trapping.
Configuration: Electro-galvanized wire basket & lightweight perforated channels with tool-less rapid-drop splice connections.
Daesan & Yeosu Petrochemical Complexes
Refinery Pipe Racks & Flare Corridors
Corrosive sulfurous compounds and extreme ambient thermal variations require high load-class cable ladders with span capacities bridging up to 6 meters between bents.
Configuration: Extra heavy-duty hot-dip galvanized C-slotted strut channels (41x82mm, 2.75mm thickness) with stainless clamp hardware.
Saemangeum Renewable Energy Zone
Utility-Scale Solar & Substation Risers
Coastal wind shear combined with high UV and moisture levels. Supports must provide zero corrosion breakdown over a 25-year project warranty timeframe.
Configuration: Zinc-Aluminum-Magnesium (ZAM) equivalent or HDG coatings with specialized seismic base plates and earth-bonding jumpers.
Innovation & R&D
Engineering Technology Roadmap: 2025 to 2030
The future of modular support systems is shifting towards automated digital modeling, high-strength low-alloy (HSLA) metallurgy, and circular lifecycle tracking.
BIM LOD 400/500 Integration
We supply exact parametric Revit & Tekla families for Korean EPC contractors. Pre-engineered assemblies permit clash-free routing in multi-layered MEP spaces, drastically cutting site labor costs.
Green Low-Carbon Steel Profiles
In accordance with global ESG mandates and Korea's Net-Zero industrial transitions, we are expanding our supply chain to incorporate scrap-based EAF (Electric Arc Furnace) green steel, reducing carbon footprints by up to 60%.
Prefabricated Multi-Service Modules
Moving installation from site floors to off-site factories: complete trapeze assemblies, cable trays, conduits, and seismic braces pre-assembled and shipped directly to Korean job sites in indexed modules.
Complete Hardware Ecosystem
Heavy-Duty Strut Channels, Seismic Brackets & Hardware Lineup
Fully integrated components engineered to complete your cable tray support infrastructure. Tested for maximum load transfer, structural rigidity, and fire endurance.
High-Tensile Threaded Metal Hanger Rod System
Precision cold-threaded hanging rods for trapeze ceiling drops, offering high tensile ratings under static electrical and fluid containment loads.
Explore Hanger Rods
Cushioned Pipe & Conduit Clamp for Strut Channels
Two-piece interlocking strut clamps with thermoplastic elastomeric linings to prevent galvanic corrosion and isolate acoustic conduit vibration.
Explore Pipe Clamps
Heavy-Duty Multi-Axis Seismic Restraint Bracket
Engineered for Korean safety standards, transferring extreme dynamic lateral moments safely into parent building concrete frames.
Explore Seismic Brackets
Universal Variable-Angle Seismic Sway Brace
Flexible connection fitting accommodating angular bracing vectors from 30° to 90° for tight plenum envelopes across modern industrial facilities.
Explore Sway Braces
Structural Strut Channel Seismic Saddle Bracket
Direct channel-clamping seismic adaptor preventing longitudinal slippage along the strut channel lip during high-magnitude shock cycles.
Explore Saddle Brackets
Complete Seismic Connection Hardware & Back Plates
High-grade fasteners, channel spring nuts, and thickened structural backing plates ensuring certified torque retention without thread stripping.
Explore Accessories
Fire-Resistant Structural C-Slotted Framing Channel
Specially formulated metallurgy and thermo-barrier coatings providing structural retention during critical emergency circuits evacuation window.
Explore Fireproof Channels

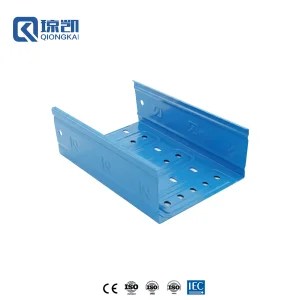

Reinforced Molded Pre-Galvanized Cable Tray (RAL5015 Blue)
Rib-reinforced solid/perforated bottom tray in 200x100mm dimensions, combining high load deflection margins with distinct network segregation coding.
Explore Molded Tray
Expert Clarifications
Frequently Asked Questions: Korea EPC Procurement
Direct answers addressing technical approvals, logistics routes to Busan and Incheon, material testing, and installation standards for South Korean project bids.
How do your cable tray systems comply with the Korea Electrotechnical Code (KEC)?
Our systems satisfy KEC Article 232.81 regarding metallic cable containment. Every channel profile, splice fitting, and bracket assembly has been verified for electrical continuity (ground bonding < 0.1Ω), protective conductor connection, and fire propagation delay. We provide third-party laboratory test reports that can be directly submitted to KESCO (Korea Electrical Safety Corporation) inspectors.
What are the lead times and shipping logistics from your Shanghai factory to South Korea?
Thanks to our strategic deep-water port proximity in Shanghai, ocean transit time to Busan Port or Incheon Port is typically only 1.5 to 2.5 days. With regular weekly vessel sailings, standard pre-galvanized and HDG orders can reach Korean project sites in under 12 to 18 days from production completion, supporting fast-track semiconductor schedule milestones.
Can you supply certified seismic calculations according to KOSHA guidelines?
Yes. Our structural engineering team provides full static and dynamic seismic calculation packages (design calculations, anchor pull-out checks, component capacity verification) tailored to site-specific peak ground acceleration (PGA) zones across South Korea (Seismic Zone I and II). These comply with MOIS (Ministry of the Interior and Safety) criteria.
What finishes do you recommend for battery plants vs marine shipyards?
For EV battery cathode/anode production areas containing corrosive solvent residues, we recommend our specialized epoxy-powder-coated finishes or chemical-resistant SS316L systems. For maritime environments such as Ulsan or Geoje shipyards, we supply heavy post-fabrication Hot-Dip Galvanizing (>85µm / >610g/m²) conforming to ISO 1461/ASTM A123 or marine-grade duplex stainless alloys.
Do you manufacture custom dimensions and special hole slot profiles?
Absolutely. With 12 automated roll-forming lines and over 60 heavy-duty stamping presses, we produce bespoke channel widths, side rail heights (50mm to 200mm), gauge thicknesses (1.2mm to 3.0mm), and non-standard slot punching configurations to match your exact MEP coordination drawings.
Are BIM/Revit models available for MEP coordination?
Yes, we provide native Autodesk Revit families (LOD 300 to LOD 400) for all primary strut profiles, cable trays, and modular bracket assemblies, enabling seamless clash detection in Navisworks for high-density semiconductor sub-fab environments.
How do you guarantee batch traceability and material certification?
Every production batch is accompanied by an EN 10204 3.1 Mill Test Certificate detailing chemical composition and mechanical tensile/yield properties. Laser-etched tracking codes and QR tags are available on channels and trays for lifecycle traceability on-site.
What is the minimum order quantity (MOQ) for custom fabricated items?
We maintain flexible order quantities for infrastructure projects. While standard catalog sizes can be ordered by bundle or pallet, customized profiles generally carry a minimal threshold of 500 meters to optimize automated roll-form tooling setups.
