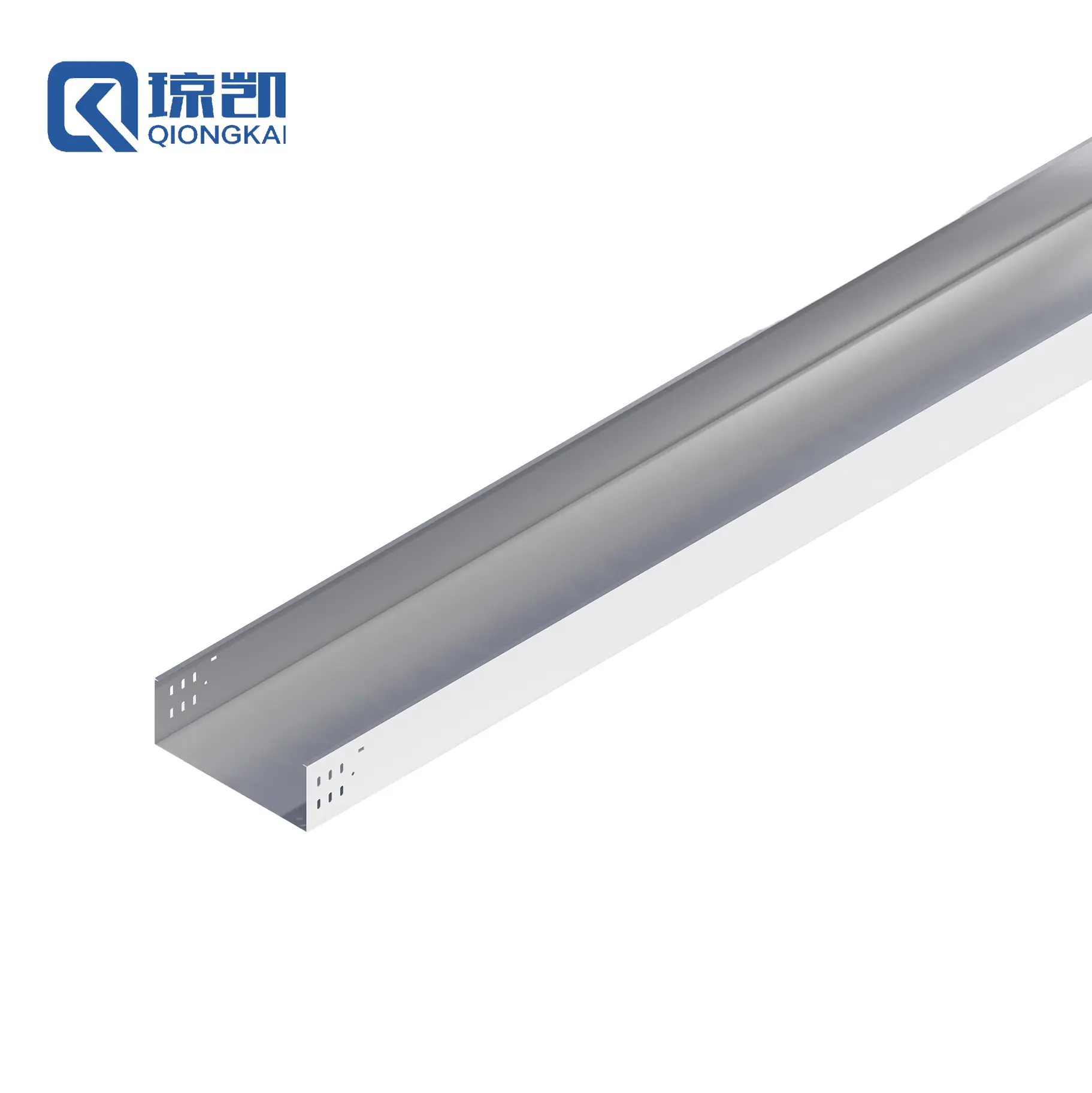

Buy Carbon Steel PG Pre Galvanized HDG Hot Dip Galvanized SS Stainless Steel Cable Trunking Trough Type Channel 400*150 Factory, Factories
Product Description
Product Overview
Cable trunkings are the non-perforated cable trays, which have better sealing performance. After covering the trunking’s cover, the interior of the cable trunking will become a isolated space. It can will protect the cables been away from rainwater, stray animals and etc. Comparing with perforated cable trays, cable trunkings are better choices for outdoor installation.
Usually there are some limited slotts on the side plates of our cable tray for connections. Our company is equipped with laser cutting machines and can provide various perforated cable trays. If you have unique requirements for the shape and arrangement of the perforations, we support customization and provide them base on a cable trunking.
Product Parameters
| Brand | Qiongkai |
| Model Tag. | CT - |
| Type | Cable tray |
| Product Name | Perforated Cable Tray |
| Material | Carbon Steel / Stainless Steel 304 306L / Alumium Alloy |
| Origin | Shanghai, China |
| Perfortable Design | Customizable |
| Surface Treatment | Pre-galvanized / Hot-dip-galvanized / Powder Coated |
| Finish | Raw / HDG / Powder coated |
| Color | Silver / Powder coated design |
| Side Rail Height | 25 - 600mm |
| Width | 50 - 1000mm |
| Length | 1 - 10m |
| Thickness | 0.5 - 2.0mm |
| Certificates | ISO / CE |
| ODM | √ |
| OEM | √ |
Shipping & Delivery Information
| MOQ | 50 |
| Insurance | Customizable |
| Loading Port | Shanghai / Tianjin |
| Selling Units | Meters / Pcs |
| Max. Working Load | According to Size |
| Production Capacity | 10,000 - 40,000 meters depend on product |
| Price Terms | LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU |
| After-sales | Online technical support |
| Free Sample | √ |
Key Features
Strong Corrosion Resistance
It can form a dense oxide film and has self - repairing ability, resistant to corrosion from moisture, acids, alkalis and salts.
Good Wear Resistance
The zinc layer has hardness and toughness, capable of withstanding friction and collision, reducing wear.
Good Aesthetic Property
It presents a uniform and bright silver - white appearance with high gloss, and is not prone to fading or color - changing.
Excellent Processing Performance
It has good plasticity and workability. The galvanized layer is not likely to peel off or crack during processing.
Good Economy
The process is simple and low - cost. With a long service life, it can reduce the overall cost.
Relatively Good Environmental Friendliness
There is less pollutant generated during production, and no harmful substances are released during use, meeting environmental requirements.
Common Parameters
Zinc Layer Thickness
The anti - corrosion grade of galvanized cable trays depends on the thickness of the zinc layer. Our company can provide cable trays with zinc layer thicknesses of 10μm, 20μm, 30μm, 40μm, 45μm, 50μm, 60μm, 65μm, and even thicker ones. If the thickness exceeds 65μm, customization is required.
Width
Common widths include 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 800mm, etc.
Height
General heights are 50mm, 60mm, 100mm, 150mm, etc.
Thickness
The thickness of the trough body and cover plate varies according to the specifications and load - bearing requirements of the cable tray. Taking steel galvanized cable trays as an example, when the width of the cable tray B ＜ 300mm, the thickness of the trough body is generally not less than 1.2mm, and the thickness of the cover plate is not less than 1.0mm. When 300mm ≤ B ＜ 500mm, the thickness of the trough body is not less than 1.5mm, and the thickness of the cover plate is not less than 1.2mm, etc.
Length
The standard lengths are usually 2m, 3m, 4m, 6m, etc., and can also be customized according to actual needs.
Application Scenarios
It is widely used in industries such as construction, power, communication, petrochemical, and metallurgy for the laying of indoor and outdoor cables. Specific application sites include electrical shafts, corridors, basements in buildings, as well as workshops, substations, and distribution stations in factories.
Certifications
Frequently Asked Questions (FAQ)
What is the difference between cable trunking and perforated cable trays?
Cable trunkings are non-perforated cable trays with a solid body and cover, forming an isolated enclosure. This structure provides superior sealing against water, dust, and animals, making them ideal for outdoor and sensitive environments compared to open perforated trays.
Can I get customized dimensions or perforation designs?
Yes. Equipped with high-precision laser cutting machines, we offer OEM and ODM services to customize the width, height, thickness, length, and perforation patterns according to your specific project requirements.
What surface treatments are available for anti-corrosion?
We offer pre-galvanized, hot-dip galvanized (HDG), and powder-coated surface treatments. Zinc layers can range from 10μm to over 65μm based on the level of anti-corrosion protection required for your environment.
What are your MOQ and delivery terms?
Our Minimum Order Quantity (MOQ) is 50 units/meters. We support various trade price terms including EXW for LCL, and FOB, CIF, CFR, DDP, and DDU for FCL shipments through Shanghai or Tianjin ports.
Do you provide free samples and technical support?
Yes, free product samples are available upon request. We also provide online technical support as part of our after-sales service to assist with engineering specifications and installation guidance.
