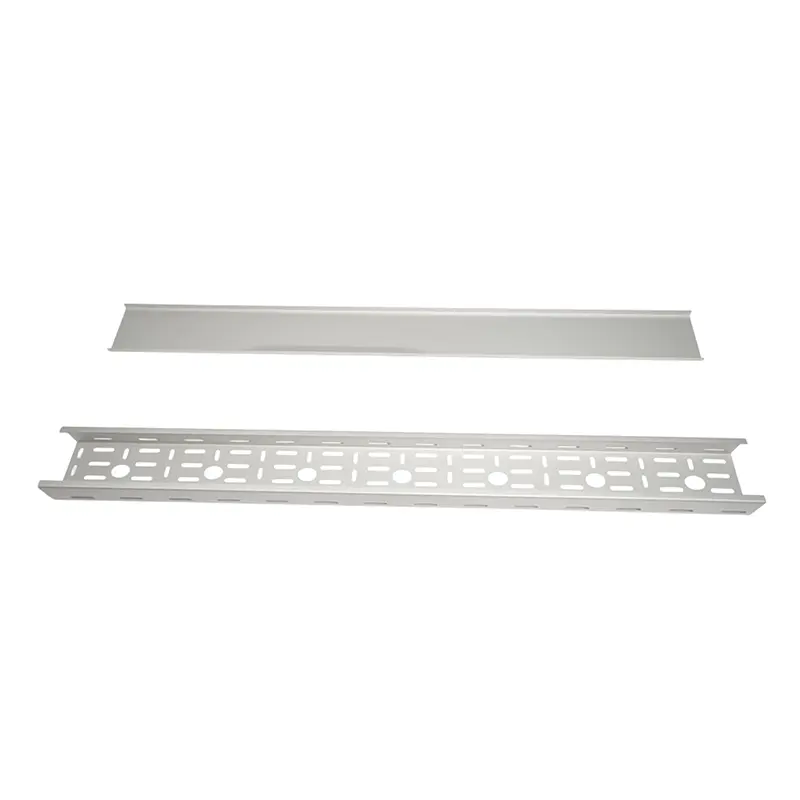

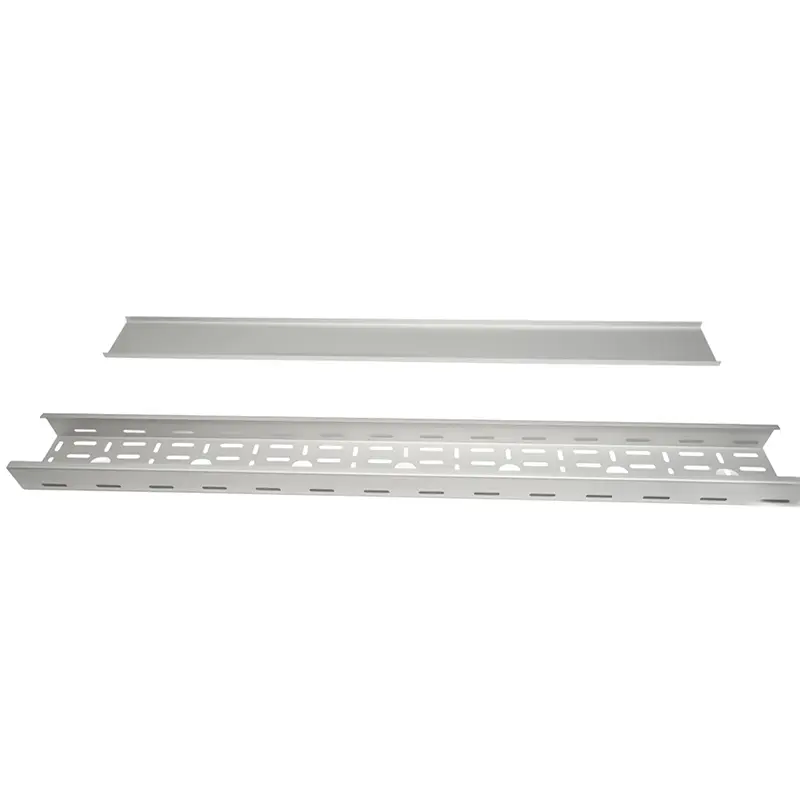

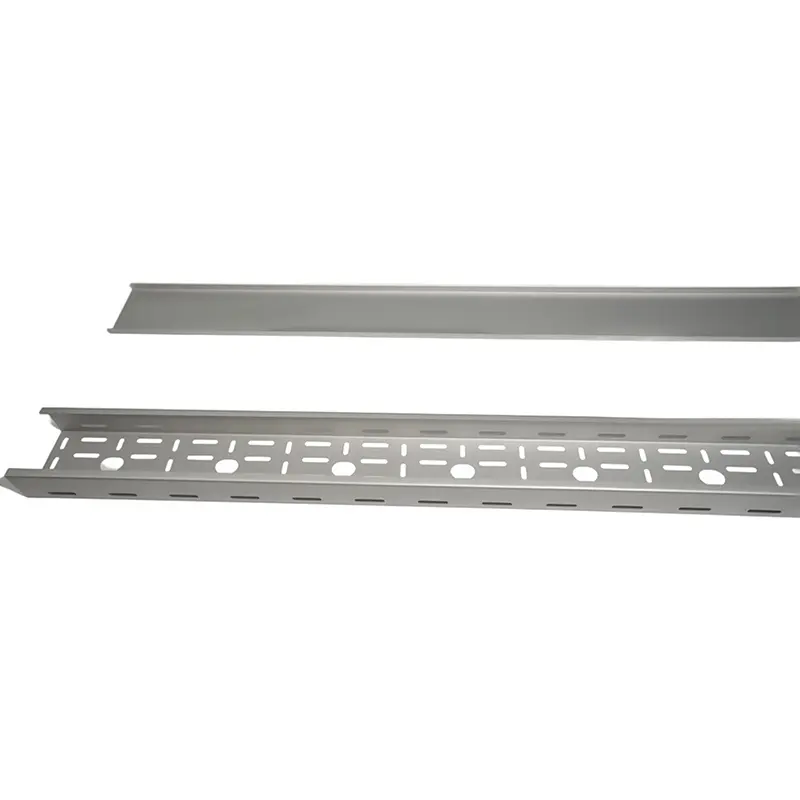

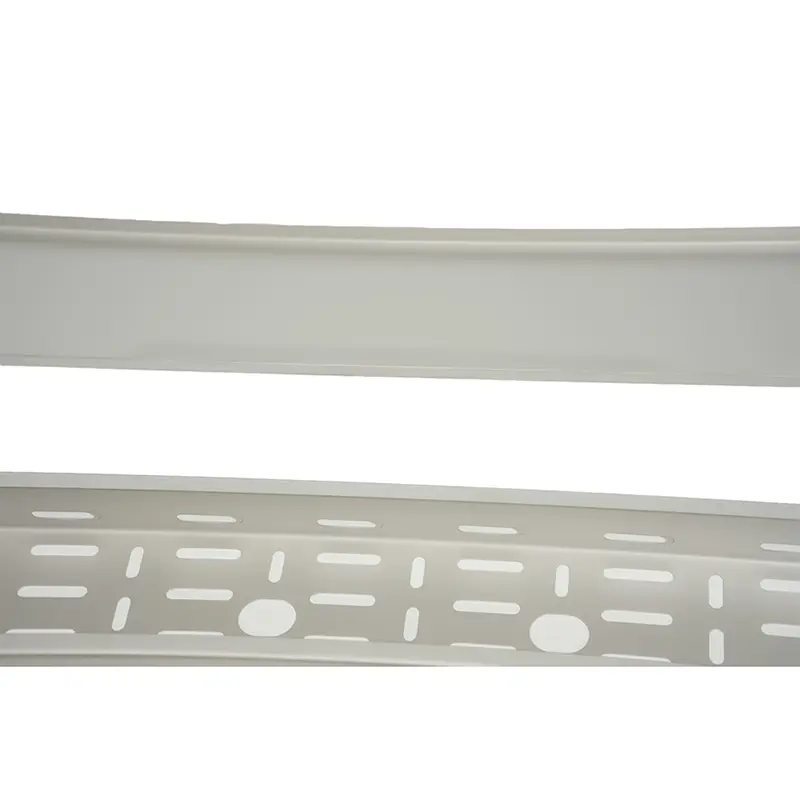

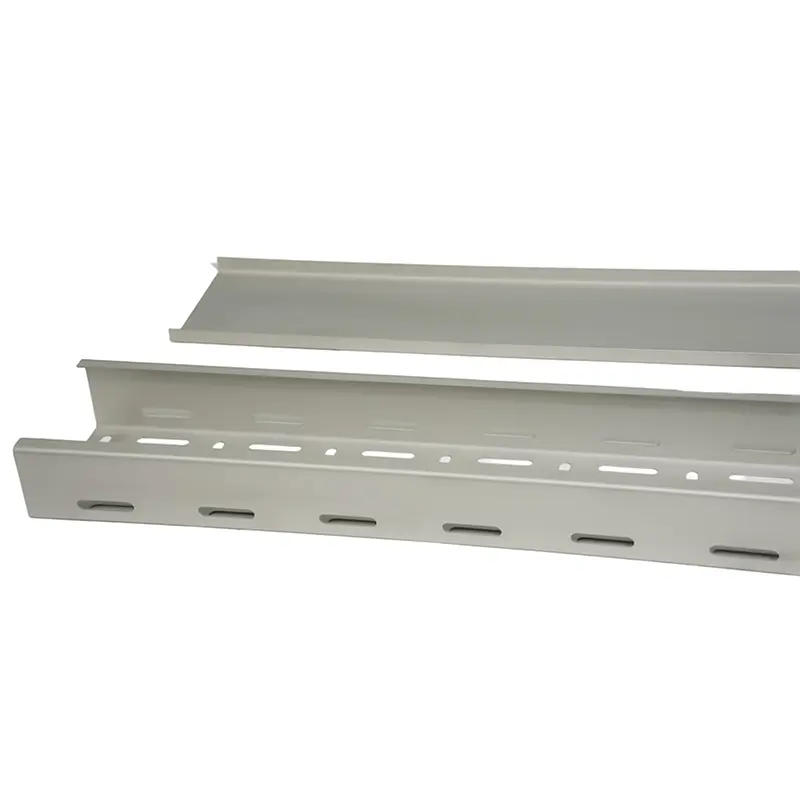

Buy Customized Stainless Steel Cable Tray With Surface Treatment Factory, Factories
Product Description
Product Specifications
| Brand | Qiongkai |
| Model Tag. | TCT - |
| Type | Cable tray |
| Product Name | Through cable tray |
| Material | Steel / Stainless Steel / Alloy / FRP |
| Origin | Shanghai, China |
| Perforable Design | Customizable |
| Surface Treatment | Galvanized / HDG / Powder coated |
| Finish | Raw / HDG / Powder coated |
| Color | Silver / Black / Green / Powder coated design |
| Side Rail Height | 25 - 600 mm |
| Width | 50 - 1000 mm |
| Length | 1 - 10 m |
| Thickness | 0.5 - 2.0 mm |
| Certificates | ISO / CE |
| ODM & OEM | Supported (√) |
Shipping & Delivery Info
| MOQ | 50 Meters |
| Selling Units | Meters |
| Production Capacity | 10,000 - 40,000 meters (depends on product) |
| Delivery Time | 25 Days |
| Price Terms | EXW, FOB, CIF, CFR |
| Loading Port | Shanghai / Tianjin |
| Max. Working Load | According to Size |
| Insurance | Customizable |
| Free Sample | Available (√) |
| After-sales Support | Online technical support |
Key Product Features
1. Excellent Corrosion Resistance
Stainless steel contains chromium and nickel, forming a dense and stable passivation film. This film effectively isolates the tray from moisture, acids, alkalis, and salts. Grades like 316L offer outstanding resistance ideal for coastal areas and chemical plants.
2. High Strength & Durability
Engineered for high mechanical strength and hardness, enabling cable trays to withstand substantial loads without deforming or breaking. Excellent resistance to impacts and vibrations ensures structural stability and safe cable operation.
3. Good Heat Resistance
Maintains stable mechanical performance across wide temperature ranges. Can withstand heat generated by active cables without deformation or damage, ensuring overall power system longevity.
4. Good Aesthetic Property
Features a bright metallic luster with a neat, clean surface. Resistant to rust and fading over extended periods, making it well-suited for high-standard aesthetic environments like commercial complexes and offices.
5. Good Fire Resistance
Constructed with non-combustible stainless steel. During fire emergencies, through cable trays help restrict flame spread, significantly minimizing structural and equipment damage.
6. Easy Installation & Maintenance
Lightweight with a streamlined structure for simplified mounting and demounting. The smooth finish repels dirt, requiring minimal upkeep and reducing overall lifecycle maintenance costs.
7. Good Electrical Performance
Provides strong electrical conductivity alongside electromagnetic shielding properties. Effectively shields signal paths against EMI noise, safeguarding delicate nearby electronic instruments.
