Product Description
Product Overview

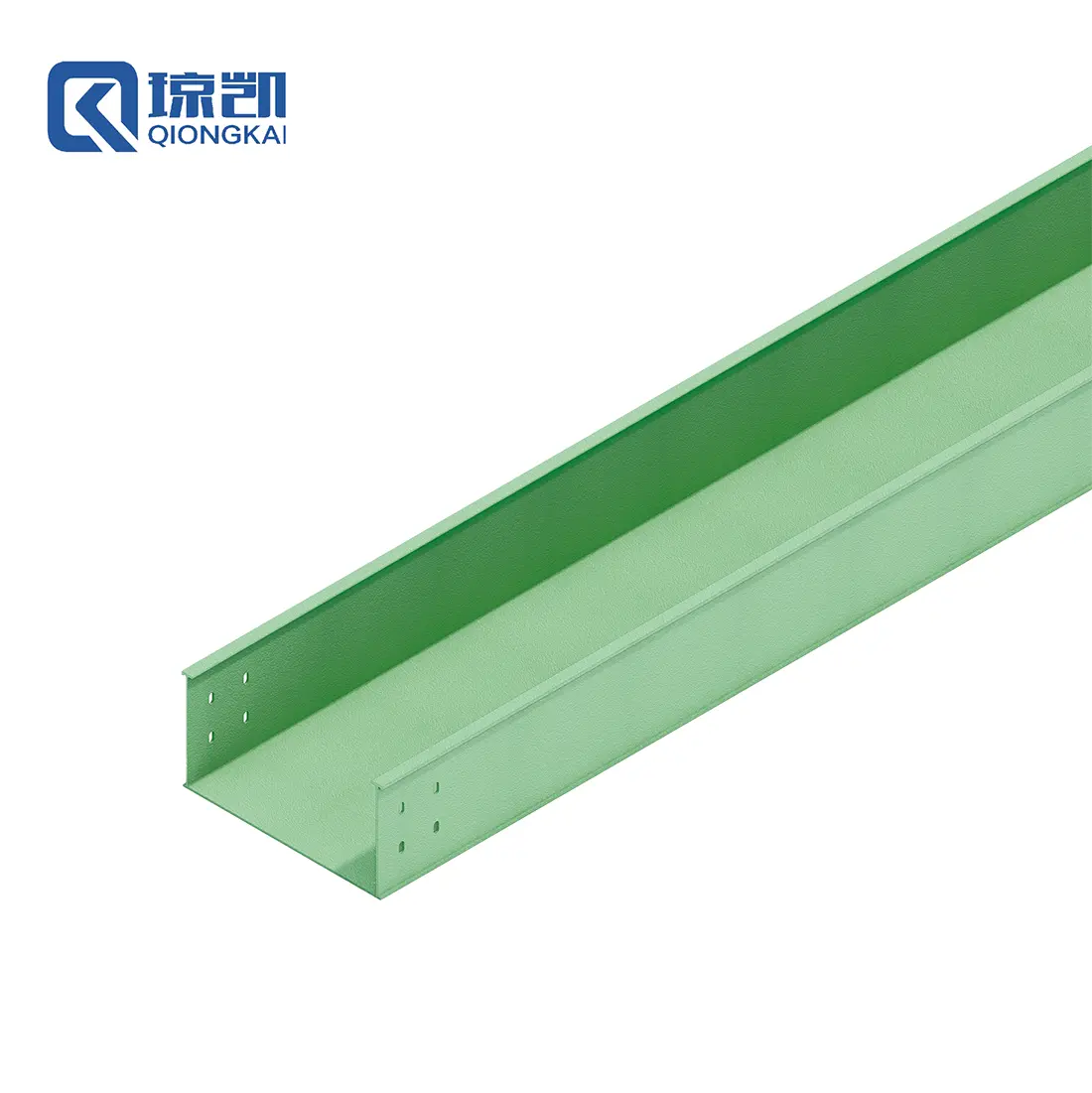

It uses glass fiber and its products as reinforcing materials and synthetic resin as the matrix material and is formed through a composite process. It is widely used in the field of cable laying for power, communication, etc.
Product Specifications
| Brand | Qiongkai |
| Model Tag. | CTR / CTIB - FRP |
| Type | Cable tray |
| Product Name | FRP Cable Trunking |
| Material | FRP |
| Origin | Hebei, China |
| Perfortable Design | Customizable |
| Surface Treatment | / |
| Finish | / |
| Color | Green |
| Side Rail Height | 50 - 200 mm |
| Width | 50 - 800 mm |
| Length | 3 m |
| Thickness | 2.6 - 4.0 mm |
| Certificates | ISO / CE |
| ODM | √ |
| OEM | √ |
Shipping and Delivery Info
| MOQ | 50 |
| Insurance | Customizable |
| Loading Port | Shanghai / Tianjin |
| Selling Units | Meters / Pcs |
| Max. Working Load | According to Size |
| Production Capacity | 10,000 - 40,000 meters depend on product |
| Price Terms | LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU |
| After-sales | Online technical support |
| Free Sample | √ |
Specification & Weight
Key Features
Uses glass fiber and its products (such as glass cloth, tape, mat, yarn, etc.) as reinforcing materials, and synthetic resin as the matrix material, made through a specialized molding process.
Features excellent tolerance to acids, alkalis, salts, and chemicals, making it ideal for extremely harsh environments.
High dielectric insulation properties effectively ensure electrical safety and eliminate risks such as electric leakage.
Engineered high strength allows heavy load capacity, while its lightweight profile facilitates easy handling and field installation.
Formulated with quality flame-retardants to provide reliable self-extinguishing capabilities, significantly reducing fire hazards.
Smooth surface finish and uniform coloration blend seamlessly with modern industrial and commercial environments.
Provides durable performance under standard operating conditions, drastically cutting periodic replacement and maintenance costs.
Delivers an economical choice compared to stainless and galvanized steel options while fulfilling necessary structural and load demands.
Certifications
Frequently Asked Questions
What is FRP Cable Trunking made of?
FRP (Fiber Reinforced Polymer) Cable Trunking is fabricated using glass fiber materials (such as glass cloth, tape, and yarn) as reinforcement and high-performance synthetic resin as the structural matrix.
What are the primary advantages of FRP over metallic cable trays?
Unlike steel or aluminum trays, FRP cable trunking provides superior corrosion resistance against acids and salts, exceptional electrical insulation, lighter weight for easier installation, and lower overall material costs.
Can the dimensions and perforations be customized?
Yes, standard dimensions range from 50mm to 800mm in width and 50mm to 200mm in side rail height, with customizable perforation patterns, wall thicknesses, and colors available to meet specific project needs.
Is FRP cable trunking safe for fire-hazard areas?
Yes, the composite formulations incorporate high-grade flame-retardants that provide self-extinguishing and flame-retardant performance to prevent flame propagation.
Are samples available before placing bulk orders?
Yes, free samples can be supplied for quality inspection and technical evaluation prior to order placement. Online technical support is also available throughout the project cycle.
