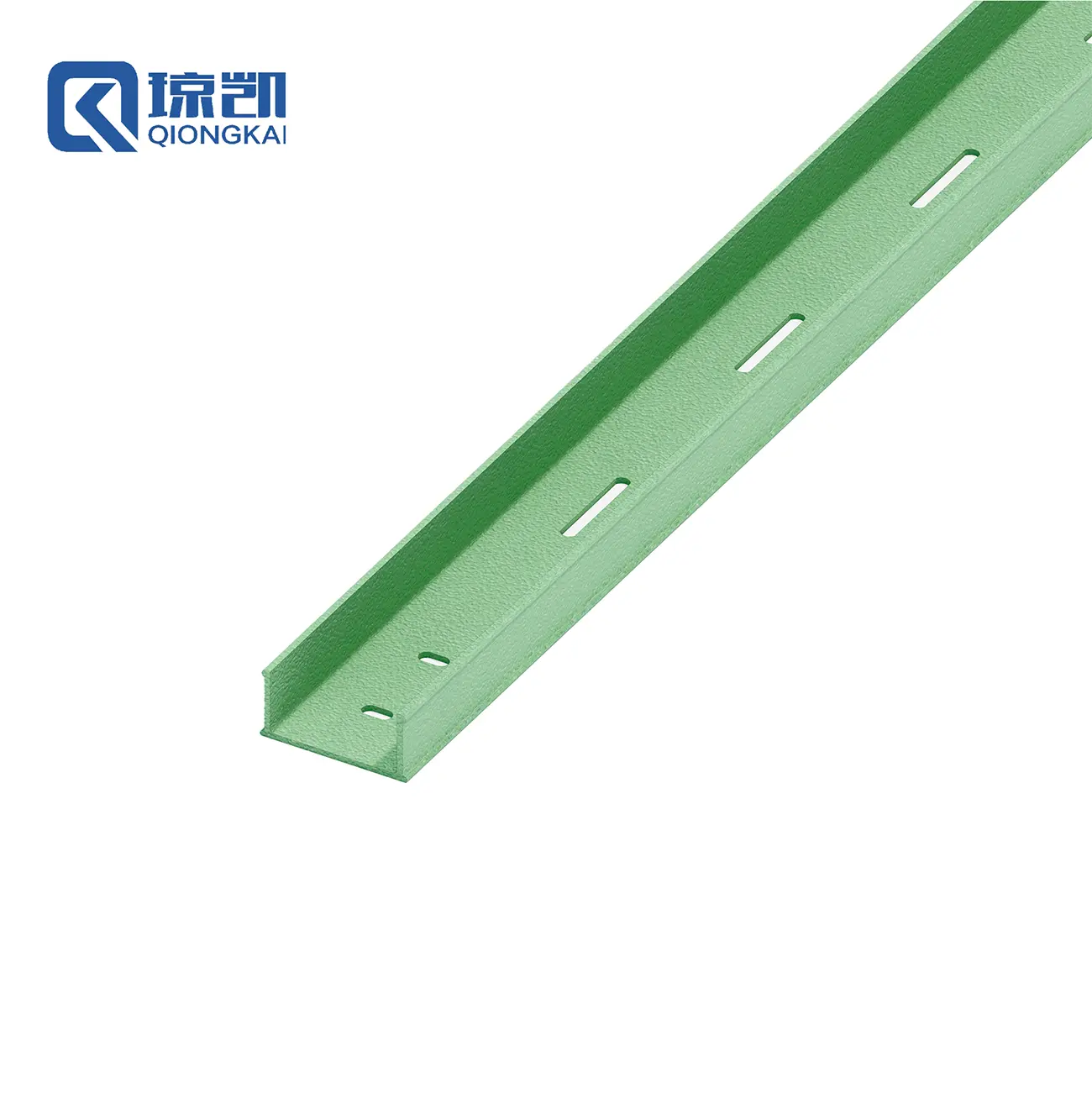

Buy FRP Perforated Cable Tray 100*50 Manufacturers, Factory
Product Description
Product Overview
It apply glass fiber and its products as reinforcing materials and synthetic resin as the matrix material and is formed through a composite process. It is widely used in the field of cable laying for power, communication, etc. FRP cable trays have better ventilations comparing with the FRP cable trunking.
Product Specifications
| Brand | Qiongkai |
| Model Tag. | PCTR / PCTIB - FRP |
| Type | Cable tray |
| Product Name | Perforated FRP Cable Trunking |
| Material | FRP |
| Origin | Hebei, China |
| Perfortable Design | Customizable |
| Surface Treatment | / |
| Finish | / |
| Color | Green |
| Side Rail Height | 50 - 200 mm |
| Width | 50 - 800 mm |
| Length | 3 m |
| Thickness | 2.6 - 4.0 mm |
| Certificates | ISO / CE |
| ODM | √ |
| OEM | √ |
Shipping & Delivery Details
| MOQ | 50 |
| Insurance | Customizable |
| Loading Port | Shanghai / Tianjin |
| Selling Units | Meters / Pcs |
| Max. Working Load | According to Size |
| Production Capacity | 10,000 - 40,000 meters depend on product |
| Price Terms | LCL: EXW | FCL: FOB / CIF / CFR / DDP & DDU |
| After-sales | Online technical support |
| Free Sample | √ |
Key Features
It uses glass fiber and its products (such as glass cloth, tape, mat, yarn, etc.) as reinforcing materials, and synthetic resin as the matrix material, which is made through a certain molding process.
It has excellent tolerance to acids, alkalis, salts, etc., making it suitable for harsh environments.
Its high insulation property can effectively ensure electrical safety and reduce risks such as electric leakage.
Its high strength allows it to bear large loads. At the same time, its light weight facilitates handling and installation.
After adding flame-retardants, they have good flame-retardant properties, reducing the risk of fire.
It has a smooth surface and various colors, which can be coordinated with the environment and has certain decorative properties.
Under normal usage conditions, it can be used for a long time, reducing replacement costs.
FRP materials also have lower prices than stainless and Galvanized materials. They might also have lower load capacity and intensity.
Certifications
Frequently Asked Questions
FRP cable trays feature perforated structures that offer significantly better ventilation and heat dissipation for running cables compared to closed FRP cable trunking.
Yes, both OEM and ODM requirements are supported. Width (50–800 mm), side rail height (50–200 mm), thickness, and perforation patterns can be customized to project specifications.
FRP materials provide superior resistance to harsh chemicals, including acids, alkalis, and salts, preventing rust and degradation often seen in metal containment systems.
Yes, free product samples can be provided for quality evaluation and testing before placing bulk orders.
The products meet global quality and safety standards, holding both ISO and CE certifications.
The minimum order quantity (MOQ) is 50 units. We offer EXW pricing for LCL orders, as well as FOB, CIF, CFR, DDP, and DDU for full container loads (FCL).
