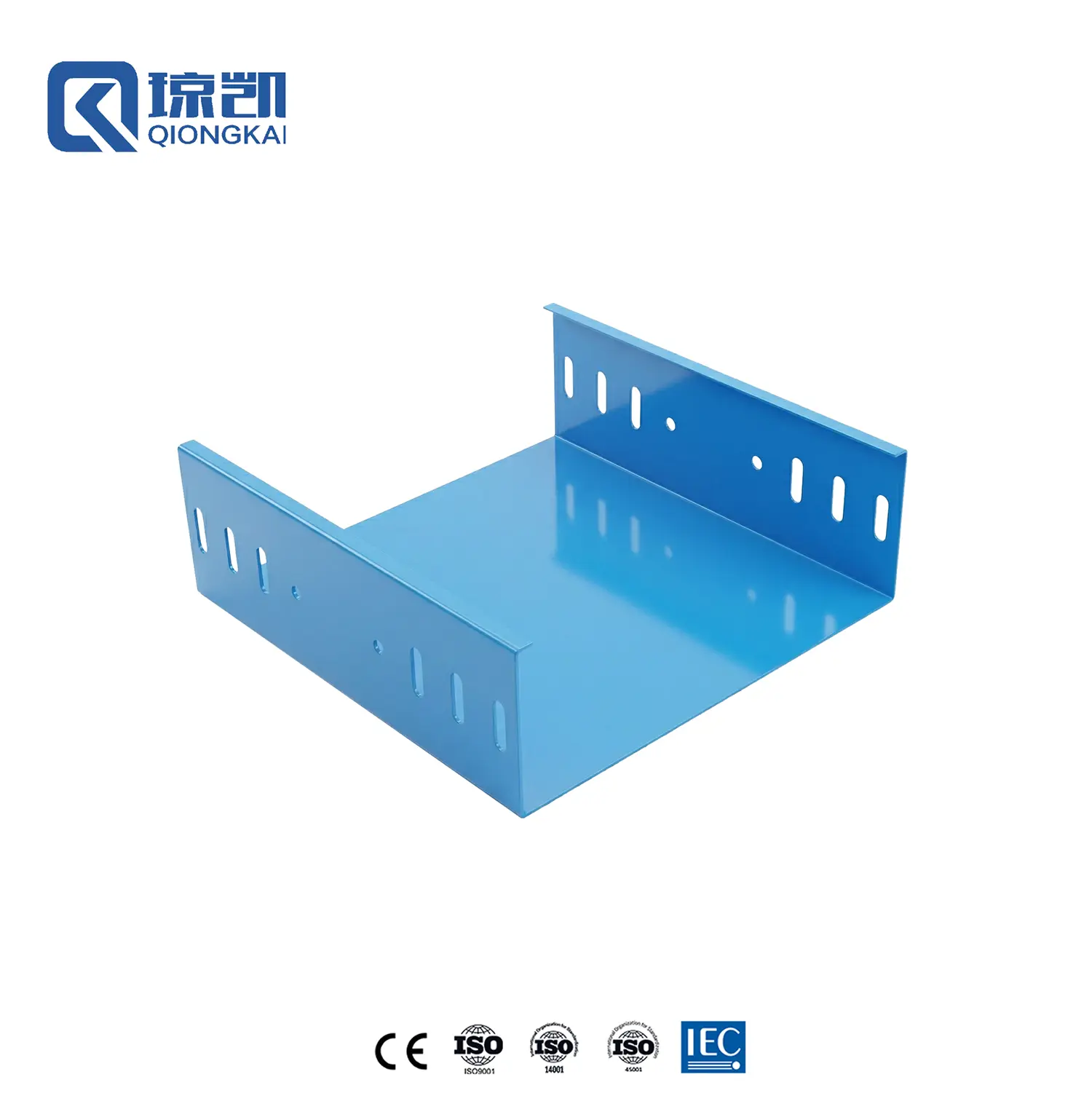

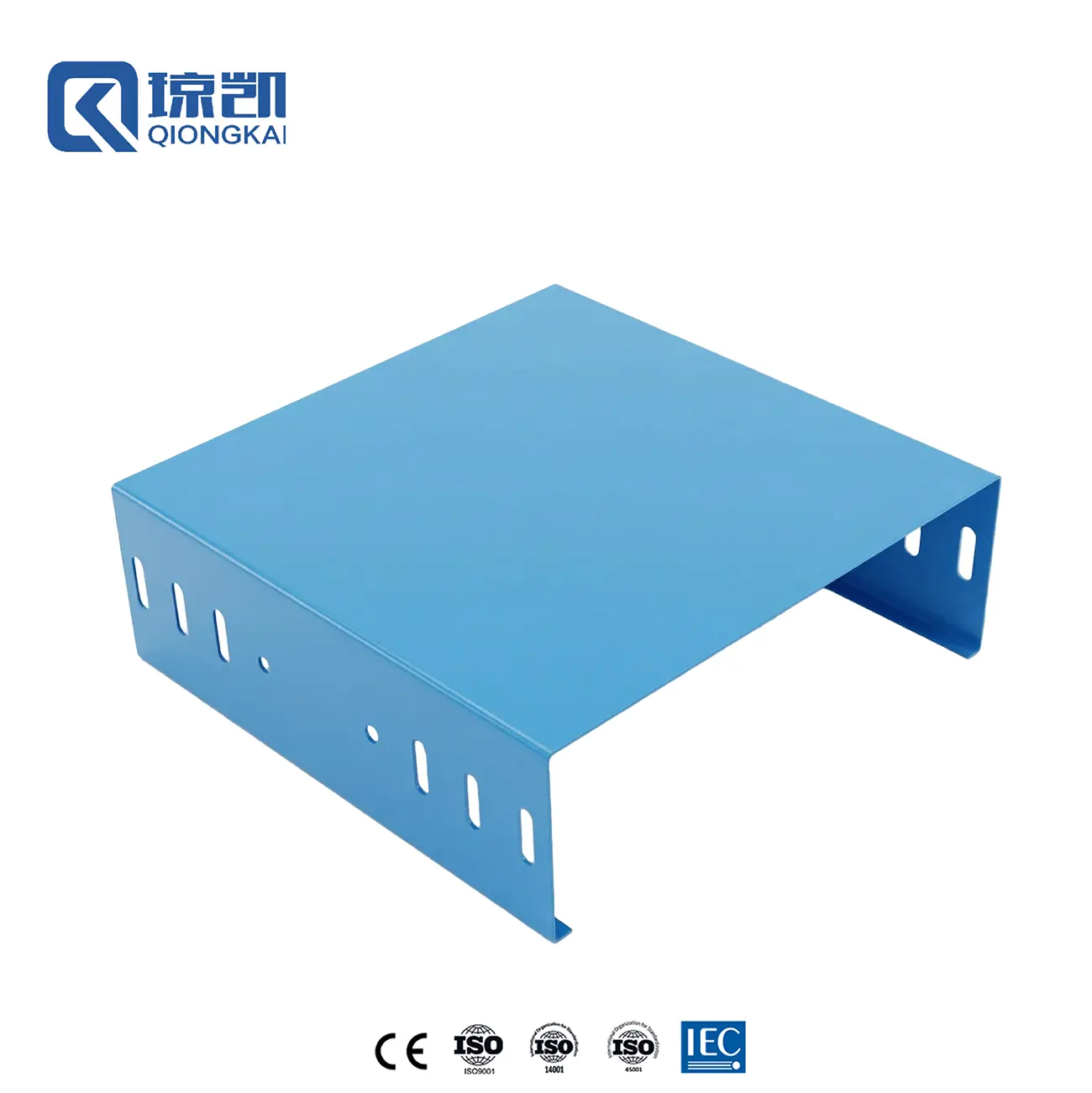

Buy Powder Coated Carbon Steel PG Pre Galvanized Cable Trunking Trough Type Channel - RAL5015 Blue Manufacturer, Suppliers
Product Description
Product Overview
The Powder coated cable trunking, also called fire spraying cable trunking, which has a layer of fire-resistant coating sprayed on the surface of a common cable trunking, endowing it with fire-proof and flame-retart functions. When a fire breaks out, it can prevent the spread of fire for a certain period, protect the cable lines, ensure the normal operation of relevant electrical equipment during the fire, and gain time for personnel evacuation and fire-fighting and rescue.
Product Parameters
| Brand | Qiongkai |
| Model Tag. | CT - |
| Type | Cable tray |
| Product Name | Perforated Cable Tray |
| Material | Carbon Steel / Stainless Steel 304 306L / Alumium Alloy |
| Origin | Shanghai, China |
| Perfortable Design | Customizable |
| Surface Treatment | Pre-galvanized / Hot-dip-galvanized / Powder Coated |
| Finish | Raw / HDG / Powder coated |
| Color | Silver / Powder coated design |
| Side Rail Height | 25 - 600mm |
| Width | 50 - 1000mm |
| Length | 1 - 10m |
| Thickness | 0.5 - 2.0mm |
| Certificates | ISO / CE |
| ODM | √ |
| OEM | √ |
Shipping & Delivery Information
| MOQ | 50 |
| Insurance | Customizable |
| Loading Port | Shanghai / Tianjin |
| Selling Units | Meters / Pcs |
| Max. Working Load | According to Size |
| Production Capacity | 10,000 - 40,000 meters depend on product |
| Price Terms | LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU |
| After-sales | Online technical support |
| Free Sample | √ |
Working Principle
The Powder coated cable trunking is mainly based on the characteristics of the fire - resistant coating. Under normal temperature, the coating formed by the fire - resistant coating plays a protective and decorative role on the cable trunking. When encountering high - temperature fire, the fire - resistant coating will undergo physical and chemical changes such as expansion and carbonization, forming a thick heat - insulating layer. This heat - insulating layer can effectively block the transfer of heat to the cable trunking and cables, slow down the heating rate of the cable trunking and cables, reduce the risk of cable damage or combustion due to high temperature, and thus extend the normal working time of the cables during a fire.
Structural Features
The fire - resistant coating is closely combined with the cable trunking substrate, forming a uniform and firm coating on the surface of the cable trunking, which is not easy to fall off. Whether during the installation process or long - term use, it can maintain a good adhesion state, ensuring the stability of the fire - proof performance.
The cable trunking part of the fire - spraying cable trunking usually has various structural forms such as trough - type, ladder - type, and tray - type, which can be selected according to different usage scenarios and cable laying requirements. For example, the trough - type fire - spraying cable trunking has good sealing performance and is suitable for places with high requirements for cable protection and where dust and water vapor need to be prevented from entering; the ladder - type fire - spraying cable trunking has good air permeability, which is convenient for cable heat dissipation and is often used in places where there are a large number of cables and good heat - dissipation conditions are required.
After spraying the fire - resistant coating, the cable trunking still maintains high mechanical strength and can bear the weight of the cables and various external forces during the installation and use process. Different specifications and materials of the cable trunking substrate can be selected according to the actual bearing requirements to ensure safe and reliable use under various working conditions.
Materials
Generally, metal materials such as carbon steel and stainless steel are used. The carbon steel cable trunking has high strength and good economy, which makes it suitable for fire-proof requirements in general environments; the stainless steel cable trunking has better corrosion resistance and is suitable for harsh environments such as humid environments and those with corrosive media.
There are two main categories: organic fire-resistant coatings and inorganic fire-resistant coatings. Organic fire-resistant coatings have good adhesion and decorative properties and also have excellent fire-proof performance, but they may release certain harmful gases at high temperatures. Inorganic fire-resistant coatings use inorganic substances as the main film-forming materials and have the advantages of non-flammability, non-toxicity, and smokelessness, with good fire-proof and heat-insulating performance and strong durability.
Powder-coated materials can be provided in different colors from RAL color plate, such as Grey, Silver, Black, and Yellow, offering aesthetic appeal.
Certifications
Frequently Asked Questions (FAQ)
What is powder-coated cable trunking mainly used for?
It is primarily designed for environments requiring enhanced fire protection and flame retardancy. When exposed to fire, the specialized coating forms a heat-insulating layer to delay heat transfer, safeguarding critical electrical circuits and supporting safe evacuation operations.
Can the dimensions and perforations be customized?
Yes, both perforated patterns and overall dimensions (including side rail height from 25mm to 600mm, width from 50mm to 1000mm, and length up to 10m) can be fully customized according to specific engineering requirements.
What colors and finishes are available?
We supply powder-coated finishes matched against the standard RAL color chart—commonly in Grey, Silver, Black, and Yellow. Surface options also include Pre-galvanized, Hot-dip-galvanized, or Raw finishes.
Do you provide OEM and ODM manufacturing services?
Yes, we provide both OEM and ODM services. We can manufacture products precisely to your architectural drawings and performance specifications under your designated brand.
Can I request samples prior to bulk orders?
Yes, free samples are available upon request for quality and specification verification prior to final order confirmation.
What are the accepted delivery and price terms?
We support EXW for LCL shipments, and FOB, CIF, CFR, DDP, and DDU for full container loads (FCL), typically loaded via Shanghai or Tianjin ports.
