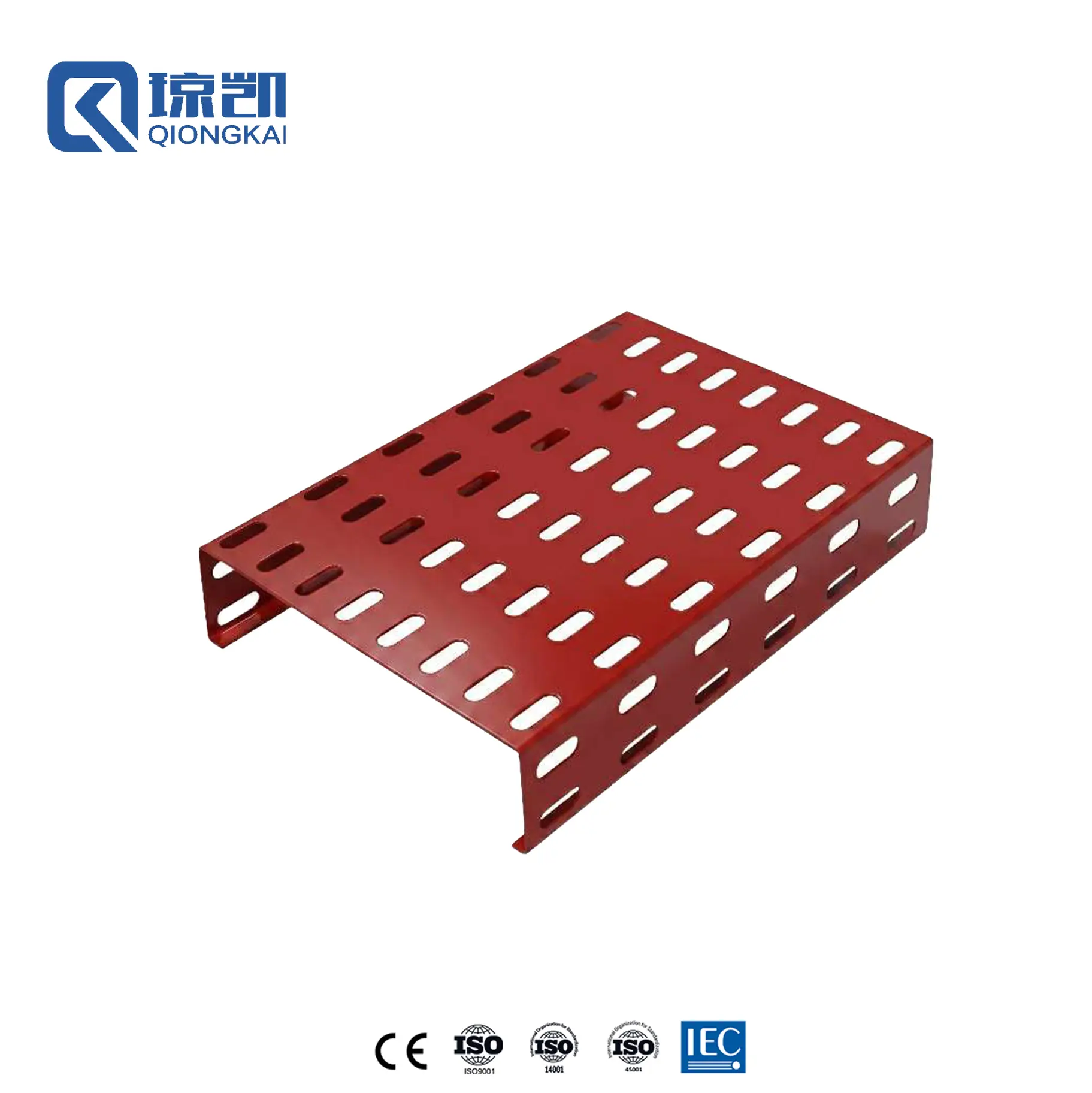

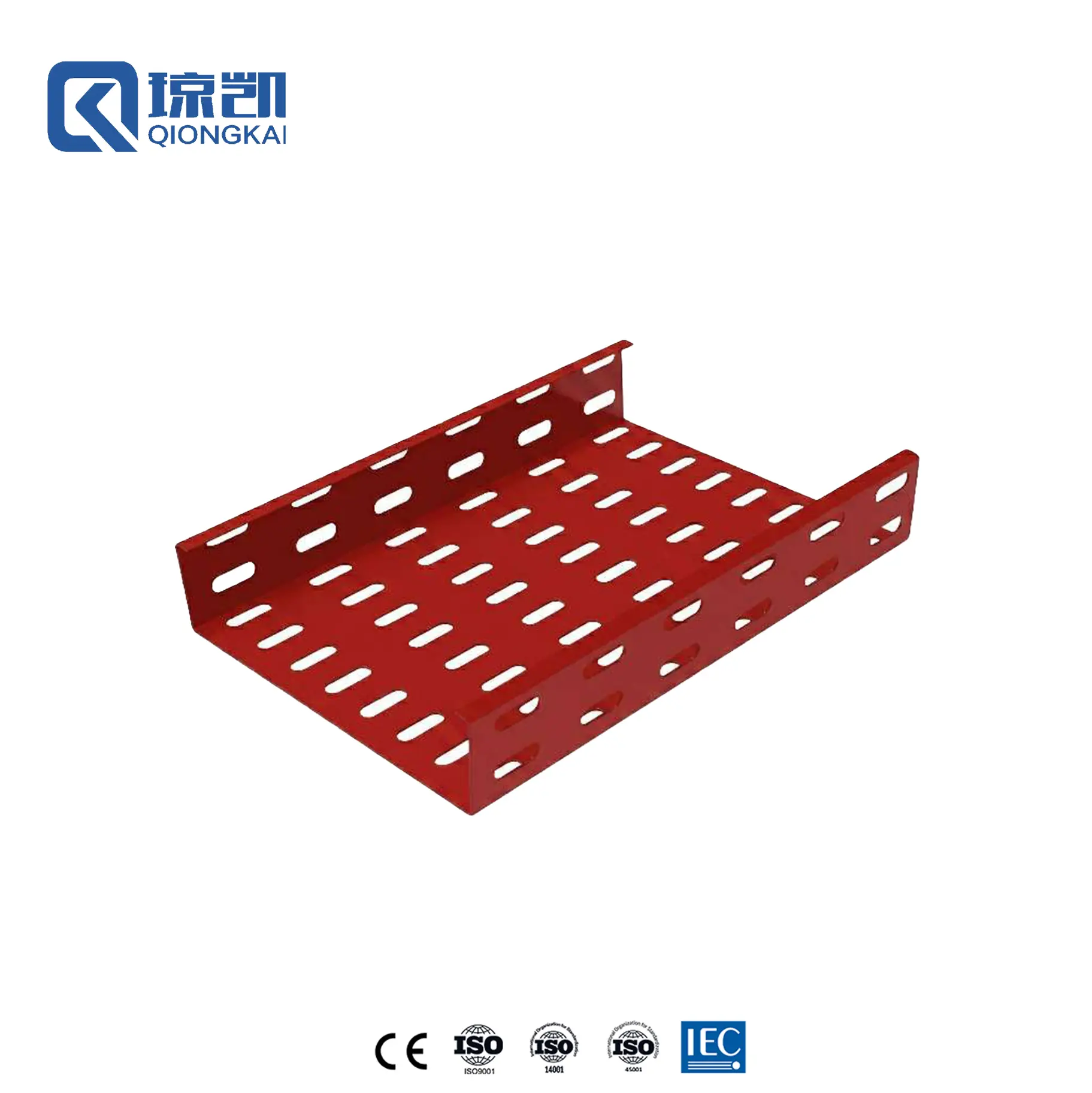

Buy Powder Coated Carbon Steel Pre Galvanized PG Cable Tray with Reinforce Ribs - RAL3020 Red 200*50 Suppliers, Price
Product Description
Product Overview
While the perforated cable trays, suitable for indoor installation. The characteristic of perforated cable trays is their excellent heat dissipation performance, which can meet the installation environments with high heat dissipation requirements. Ventilation and load capacity are both important aspects to be concerned will selecting cable trays.
This unique wavey reinforced ribs designs on the bottom plate and side plate provides extra load capacity and apperance recognition. Usually we follow the pill shape slotting pattern on all sides of our cable trays. Our company is equipped with laser cutting machines and can provide various perforated cable trays. If you have unique requirements for the shape and arrangement of the perforations, we support customization.
Product Parameters
| Brand | Qiongkai |
| Model Tag. | PCT - R |
| Type | Cable tray |
| Product Name | Reinforced Perforated Cable Tray |
| Material | Carbon Steel |
| Origin | Shanghai, China |
| Perfortable Design | Customizable |
| Surface Treatment | Pre-galvanized / Hot-dip-galvanized / Powder Coated |
| Finish | Raw / HDG / Powder coated |
| Color | Silver / Powder coated design |
| Side Rail Height | 25 - 600 mm |
| Width | 100 - 800 mm |
| Length | 1 - 12 m |
| Thickness | 0.5 - 2.0 mm |
| Certificates | ISO / CE |
| ODM | √ |
| OEM | √ |
Shipping & Delivery Information
| MOQ | 50 |
| Insurance | Customizable |
| Loading Port | Shanghai / Tianjin |
| Selling Units | Meters / Pcs |
| Max. Working Load | According to Size |
| Production Capacity | 10000 - 40000 Meters depend on product |
| Price Terms | LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU |
| After-sales | Online technical support |
| Free Sample | √ |
Key Features
Strong corrosion resistance
It can form a dense oxide film and has self-repairing ability, resistant to corrosion from moisture, acids, alkalis and salts.
Good wear resistance
The zinc layer has hardness and toughness, capable of withstanding friction and collision, reducing wear.
Good aesthetic property
It presents a uniform and bright silver-white appearance with high gloss, and is not prone to fading or color-changing.
Excellent processing performance
It has good plasticity and workability. The galvanized layer is not likely to peel off or crack during processing.
Good economy
The process is simple and low-cost. With a long service life, it can reduce the overall cost.
Relatively good environmental friendliness
There is less pollutant generated during production, and no harmful substances are released during use, meeting environmental requirements.
Common parameters
Zinc Layer Thickness:The anti-corrosion grade of galvanized cable trays depends on the thickness of the zinc layer. Our company can provide cable trays with zinc layer thicknesses of 10μm, 20μm, 30μm, 40μm, 45μm, 50μm, 60μm, 65μm, and even thicker ones. If the thickness exceeds 65μm, customization is required.
Widths:Common widths include 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 800mm, etc.
Height:General heights are 50mm, 60mm, 100mm, 150mm, etc.
Thickness:The thickness of the trough body and cover plate varies according to the specifications and load-bearing requirements of the cable tray. Taking steel galvanized cable trays as an example, when the width of the cable tray B < 300mm, the thickness of the trough body is generally not less than 1.2mm, and the thickness of the cover plate is not less than 1.0mm. When 300mm ≤ B < 500mm, the thickness of the trough body is not less than 1.5mm, and the thickness of the cover plate is not less than 1.2mm, etc.
Length:The standard lengths are usually 2m, 3m, 4m, 6m, etc., and can also be customized according to actual needs.
Application scenarios
It is widely used in industries such as construction, power, communication, petrochemical, and metallurgy for the laying of indoor and outdoor cables. Specific application sites include electrical shafts, corridors, basements in buildings, as well as workshops, substations, and distribution stations in factories.
Certifications
Frequently Asked Questions
QWhat makes the reinforced perforated cable tray unique?
It features unique wavy reinforced ribs on both the bottom and side plates, which significantly enhances load capacity and provides recognizable visual identification, combined with pill-shaped slotting for optimal ventilation.
QCan the perforation patterns and tray dimensions be customized?
Yes. Equipped with high-precision laser cutting machines, we can customize slot patterns, arrangements, widths (100–800 mm), side rail heights (25–600 mm), and lengths (1–12 m) according to your specific requirements.
QWhat surface finish options are available for corrosion protection?
We offer Pre-galvanized, Hot-Dip Galvanized (HDG), and Powder Coated finishes. Zinc coating thicknesses range from 10μm up to 65μm or higher upon request to handle diverse indoor and outdoor installation conditions.
QWhat is the Minimum Order Quantity (MOQ) and production capacity?
The MOQ is 50 units (meters or pieces). Our production facility has a high output capacity ranging between 10,000 to 40,000 meters depending on product specifications.
QDo you provide samples and OEM/ODM services?
Yes, free samples are available upon request. We also fully support OEM and ODM services to accommodate your engineering and commercial requirements.
QWhich certifications do your cable trays comply with?
Our manufacturing processes and perforated cable tray systems comply with ISO and CE international quality and safety management standards.
