Wholesale Pre Galvanized Reinforced Cable Tray 200x50mm Manufacturer Factory Direct Price Global B2B Supplier

Product Overview

While the perforated cable trays, suitable for indoor installation. The characteristic of perforated cable trays is their excellent heat dissipation performance, which can meet the installation environments with high heat dissipation requirements. Ventilation and load capacity are both important aspects to be concerned will selecting cable trays.

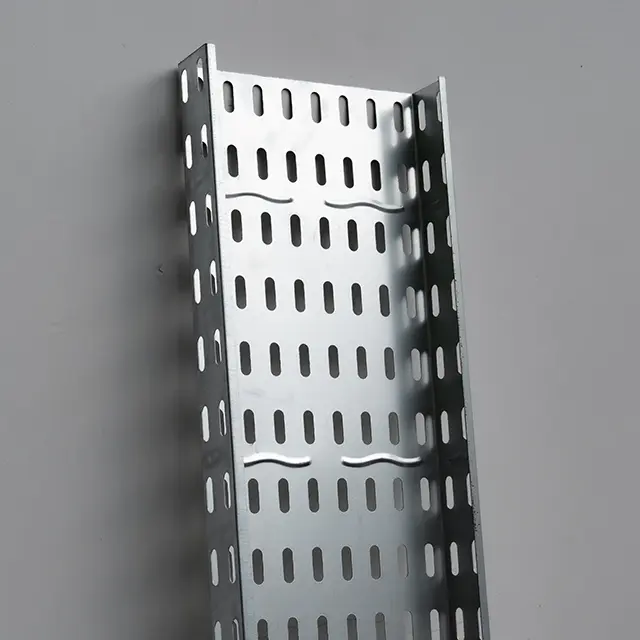

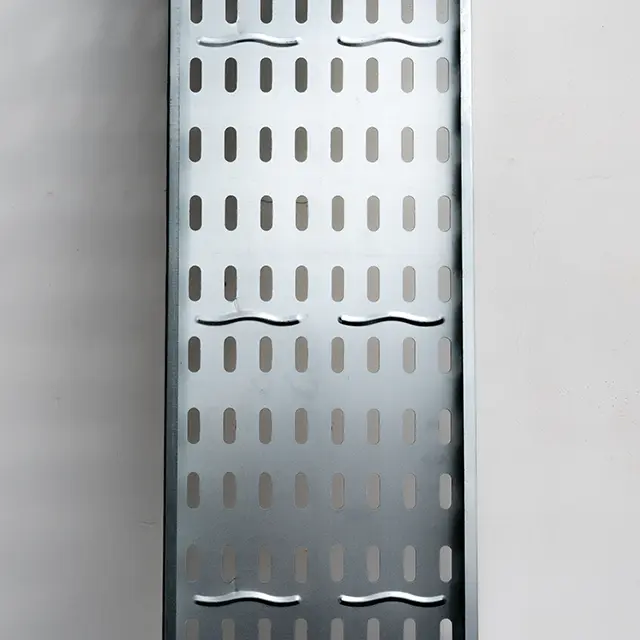

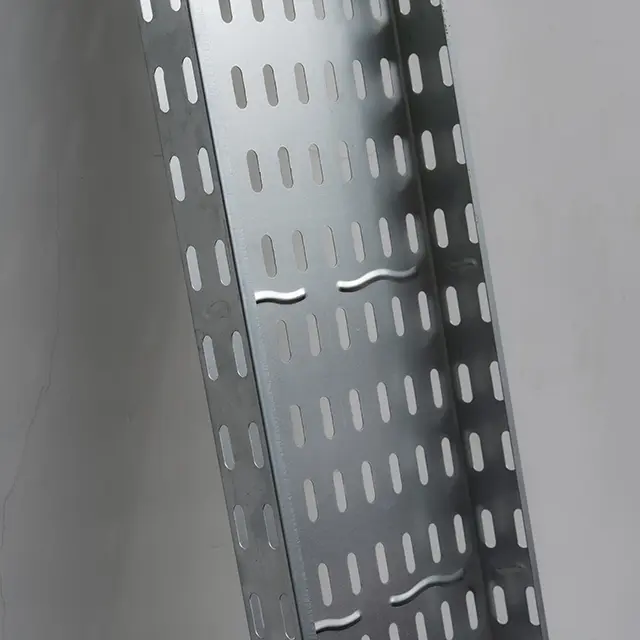

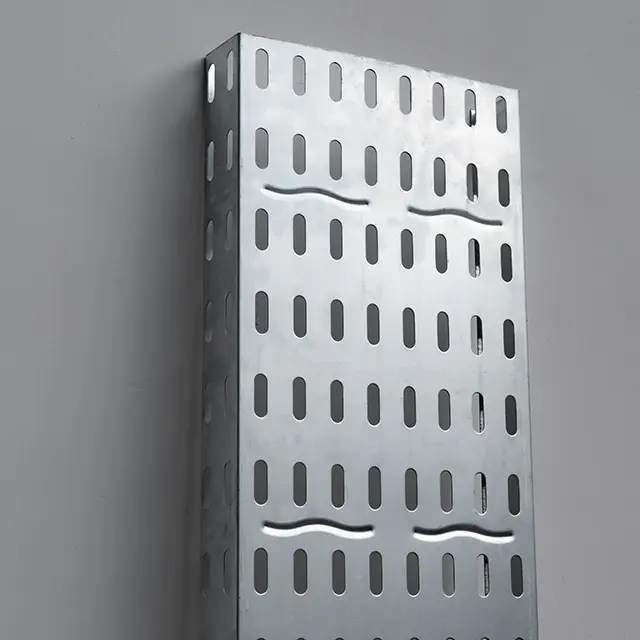

This unique wavey reinforced ribs designs on the bottom plate and side plate provides extra load capacity and apperance recognition. Usually we follow the pill shape slotting pattern on all sides of our cable trays. Our company is equipped with laser cutting machines and can provide various perforated cable trays. If you have unique requirements for the shape and arrangement of the perforations, we support customization.

Product Parameters

Brand	Qiongkai
Model Tag.	PCT - R
Type	Cable tray
Product Name	Reinforced Perforated Cable Tray
Material	Carbon Steel
Origin	Shanghai, China
Perfortable Design	Customizable
Surface Treatment	Pre-galvanized / Hot-dip-galvanized / Powder Coated
Finish	Raw / HDG / Powder coated
Color	Silver / Powder coated design
Side Rail Height	25 - 600 mm
Width	100 - 800 mm
Length	1 - 12 m
Thickness	0.5 - 2.0 mm
Certificates	ISO / CE
ODM	√
OEM	√

Shipping & Delivery Information

MOQ	50
Insurance	Customizable
Loading Port	Shanghai / Tianjin
Selling Units	Meters / Pcs
Max. Working Load	According to Size
Production Capacity	10000 - 40000 Meters depend on product
Price Terms	LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU
After-sales	Online technical support
Free Sample	√

Key Features

Strong corrosion resistance

It can form a dense oxide film and has self - repairing ability, resistant to corrosion from moisture, acids, alkalis and salts.

Good wear resistance

The zinc layer has hardness and toughness, capable of withstanding friction and collision, reducing wear.

Good aesthetic property

It presents a uniform and bright silver - white appearance with high gloss, and is not prone to fading or color - changing.

Excellent processing performance

It has good plasticity and workability. The galvanized layer is not likely to peel off or crack during processing.

Good economy

The process is simple and low - cost. With a long service life, it can reduce the overall cost.

Relatively good environmental friendliness

There is less pollutant generated during production, and no harmful substances are released during use, meeting environmental requirements.

Common parameters

Zinc Layer Thickness: The anti - corrosion grade of galvanized cable trays depends on the thickness of the zinc layer. Our company can provide cable trays with zinc layer thicknesses of 10μm, 20μm, 30μm, 40μm, 45μm, 50μm, 60μm, 65μm, and even thicker ones. If the thickness exceeds 65μm, customization is required.

Widths: Common widths include 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 800mm, etc.

Height: General heights are 50mm, 60mm, 100mm, 150mm, etc.

Thickness: The thickness of the trough body and cover plate varies according to the specifications and load - bearing requirements of the cable tray. Taking steel galvanized cable trays as an example, when the width of the cable tray B ＜ 300mm, the thickness of the trough body is generally not less than 1.2mm, and the thickness of the cover plate is not less than 1.0mm. When 300mm ≤ B ＜ 500mm, the thickness of the trough body is not less than 1.5mm, and the thickness of the cover plate is not less than 1.2mm, etc.

Length: The standard lengths are usually 2m, 3m, 4m, 6m, etc., and can also be customized according to actual needs.

Application scenarios

It is widely used in industries such as construction, power, communication, petrochemical, and metallurgy for the laying of indoor and outdoor cables. Specific application sites include electrical shafts, corridors, basements in buildings, as well as workshops, substations, and distribution stations in factories.

Certifications

Frequently Asked Questions (FAQ)

QWhat makes the reinforced perforated cable tray unique in structure?

The tray features unique wavy reinforced ribs on both the bottom and side plates, which substantially increase load-bearing capacity while providing a distinctive design aesthetic.

QCan the perforation patterns and tray dimensions be customized?

Yes, our facility is equipped with advanced laser cutting machines to customize hole shapes, slot arrangements, and structural dimensions (width, height, thickness, and length) according to project needs.

QWhat surface finish options are available for corrosion protection?

We offer pre-galvanized, hot-dip galvanized (HDG), and powder-coated surface treatments, with customizable zinc layer thicknesses ranging from 10μm to over 65μm to resist harsh environments.

QWhat are the minimum order quantity (MOQ) and sample policies?

The minimum order quantity is 50 units (meters/pcs), and free samples are available upon request to evaluate product quality before placing bulk orders.

QWhich certifications do these cable trays hold?

All products are manufactured under strict compliance standards and are certified with ISO and CE management and safety credentials.
