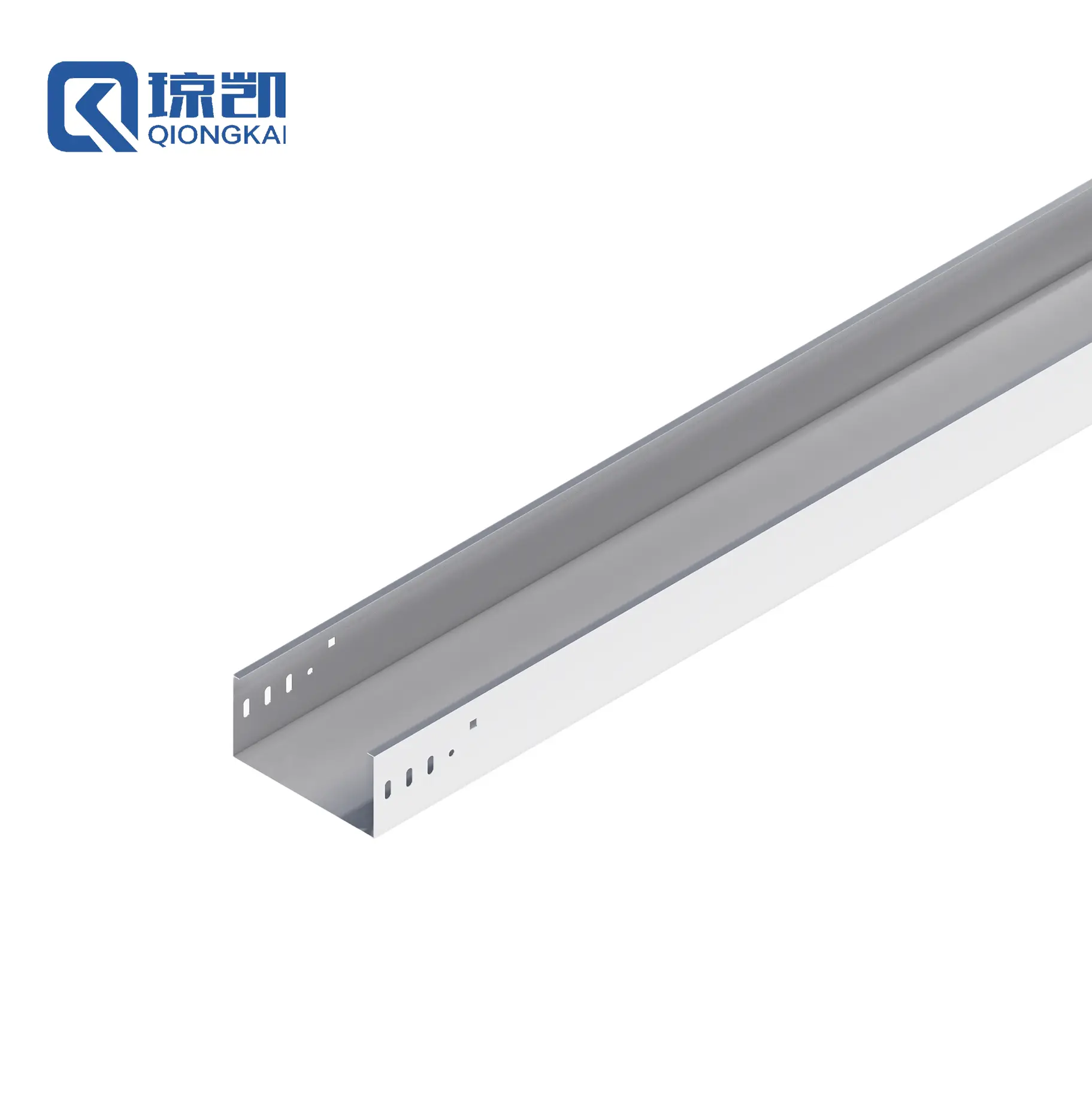

Wholesale Carbon Steel PG Pre Galvanized HDG Hot Dip Galvanized SS Stainless Steel Cable Trunking Trough Type Channel 200*100 Manufacturer, Suppliers

1 / 1

Wholesale Carbon Steel PG Pre Galvanized HDG Hot Dip Galvanized SS Stainless Steel Cable Trunking Trough Type Channel 200*100 Manufacturer, Suppliers

Cable trunkings are the non-perforated cable trays, which have better sealing performance. After covering the trunking’s cover, the interior of the cable trunking will become a isolated space.

Send Inquiry

Product Description

Product Overview

Cable trunkings are non-perforated cable trays featuring superior sealing performance. Once covered with the trunking lid, the interior forms an isolated, highly secure environment that actively protects enclosed cables from rainwater, moisture, stray animals, and foreign intrusions. Compared to standard perforated cable trays, solid-bottom cable trunkings serve as a far more dependable solution for outdoor cable management and demanding environments.

Under standard production, limited connection slots are engineered onto the side plates for streamlined installation. With laser cutting technology in-house, we manufacture a comprehensive selection of cable routing solutions. Bespoke designs, distinct cutout shapes, and customized slot layouts based on specific project requirements are fully supported.

Product Parameters

Brand	Qiongkai
Model Tag.	CT -
Type	Cable tray
Product Name	Perforated Cable Tray
Material	Carbon Steel / Stainless Steel 304, 316L / Aluminum Alloy
Origin	Shanghai, China
Perforated Design	Customizable
Surface Treatment	Pre-galvanized / Hot-dip galvanized / Powder Coated
Finish	Raw / HDG / Powder coated
Color	Silver / Custom powder coated design
Side Rail Height	25 - 600 mm
Width	50 - 1000 mm
Length	1 - 10 m
Thickness	0.5 - 2.0 mm
Certificates	ISO / CE
ODM / OEM	Supported (√)

Shipping & Delivery Information

MOQ	50 Meters / Pcs
Insurance	Customizable
Loading Port	Shanghai / Tianjin
Selling Units	Meters / Pcs
Max. Working Load	Engineered according to profile size and structural load calculation
Production Capacity	10,000 - 40,000 meters depending on product type
Price Terms	LCL: EXW \| FCL: FOB / CIF / CFR / DDP & DDU
After-sales Service	Online technical support
Free Sample	Available upon request (√)

Key Features

Strong Corrosion Resistance Forms a self-repairing dense oxide passive layer offering robust defense against moisture, chemical vapors, acids, alkalis, and industrial salts.

Wear & Impact Resistance Toughened zinc metallurgical bonding withstands rigorous physical transit, pulling friction, and site-level collision without structural damage.

Clean Aesthetic Quality Provides a uniform, high-gloss silver-white surface finish designed to prevent fading, discoloration, and weathering over prolonged deployments.

Mechanical Ductility Offers high mechanical plasticity and precision workability; the protective surface layer does not peel, chip, or flake during secondary field cutting.

Economic Efficiency A dependable, low-maintenance protective solution that simplifies infrastructure operations and reduces whole-life maintenance expenditure.

Environmental Safety Manufactured through controlled low-emission engineering methods, creating a non-toxic channel that produces no off-gassing during operation.

Galvanized steel cable trunking structure

Common Parameters & Specifications

Zinc Layer Thickness: The ultimate anti-corrosion rating of galvanized cable trays depends on the thickness of the applied protective zinc layer. Standard offerings include zinc layer thicknesses of 10μm, 20μm, 30μm, 40μm, 45μm, 50μm, 60μm, and 65μm. Enhanced protective coatings exceeding 65μm are engineered on demand via heavy-duty hot-dip galvanization.

Standard Dimensions: Common tray widths range across 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, and 800mm. Standard side rail heights include 50mm, 60mm, 100mm, and 150mm. Standard tray section lengths are supplied at 2m, 3m, 4m, and 6m, with tailored section profiles cut to custom site dimensions.

Material Thickness: The thickness of the trough body and its top cover plate corresponds directly to load ratings and span criteria. For galvanized steel systems with a width (W) < 300mm, minimum structural thickness requires ≥1.2mm for the trough body and ≥1.0mm for the cover plate. For 300mm ≤ W < 500mm, the body requires ≥1.5mm and the cover requires ≥1.2mm.

Perforated and solid trunking dimensional details

Application Scenarios

Engineered for wide commercial and industrial implementation, these systems support interior and outdoor electrical lines across civil construction, energy production, telecommunications, petrochemical networks, and metallurgy facilities. Primary integration points cover commercial building riser shafts, distribution corridors, basement cable passages, industrial workshops, and substations.

Cable trunking industrial site installation

Certifications & Quality Control

Manufactured under rigid structural quality control protocols, all systems comply with international construction compliance including ISO and CE production directives.

Frequently Asked Questions

What is the difference between cable trunking and perforated cable trays?

Cable trunking features an unperforated bottom and a fitted cover plate, creating an enclosed environment that shields wires against water, debris, and environmental wear. Perforated trays feature slotted bases to optimize heat dissipation, making them suited for indoor power distribution where ventilation is a priority.

Can cable trunking profiles be tailored to project specifications?

Yes. We support custom production runs covering specific widths (50–1000mm), side heights (25–600mm), gauge thicknesses, material grades, and connection slot geometries using CNC laser cutting machinery.

Which surface treatment is recommended for external installation?

Hot-dip galvanized (HDG) finishes with thicker zinc coatings (50μm to over 65μm) or stainless steel (304/316L) are recommended for external, seaside, or chemically aggressive environments due to their protective properties.

Are free evaluation samples available prior to full production runs?

Yes, free product samples are provided to help assess structural gauge, fit, finish, and engineering performance before placing bulk commercial orders.

What international export price terms and payment methods are supported?

We accommodate standard international trade conditions, offering EXW terms for less-than-container loads (LCL), as well as FOB, CIF, CFR, DDP, and DDU terms for full container shipments (FCL) managed via Shanghai or Tianjin ports.
