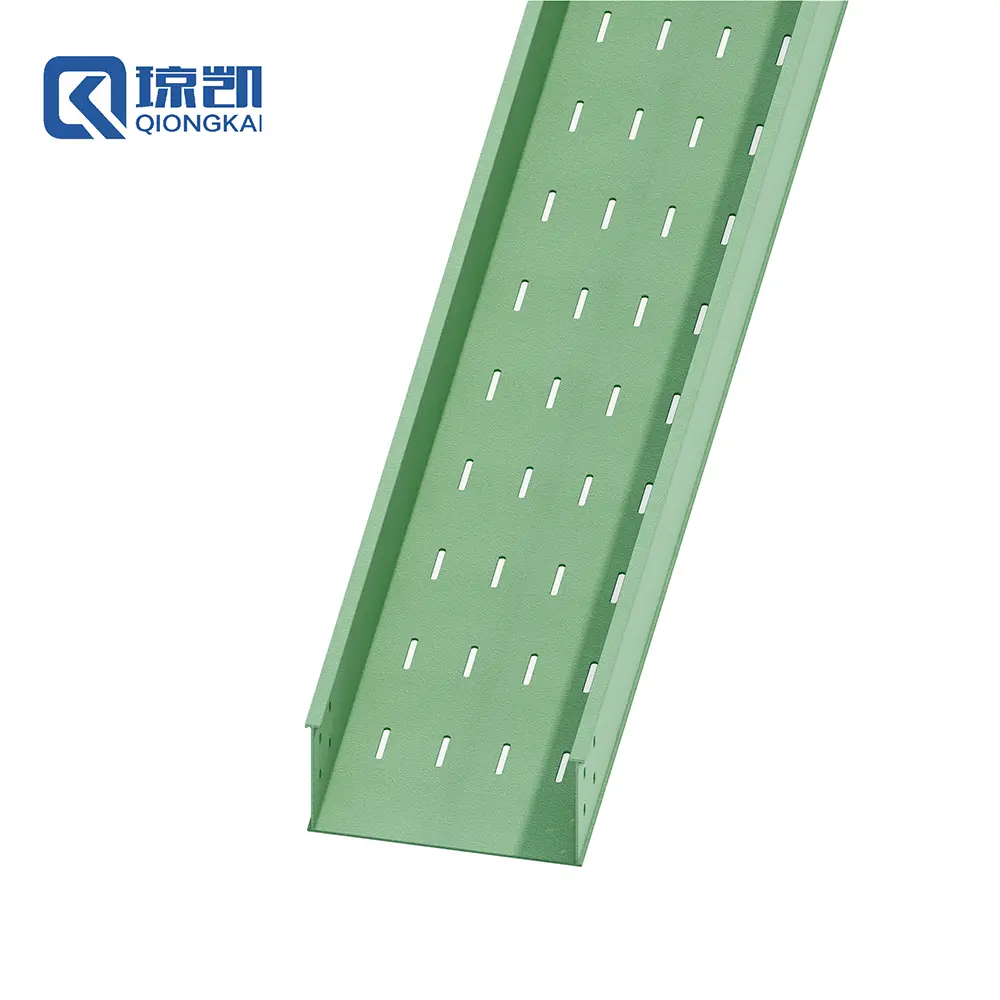

Wholesale FRP Perforated Cable Tray 400*200 Manufacturer, Factory
Product Description
Product Overview
It apply glass fiber and its products as reinforcing materials and synthetic resin as the matrix material and is formed through a composite process. It is widely used in the field of cable laying for power, communication, etc. FRP cable trays have better ventilations comparing with the FRP cable trunking.
Product Specifications
| Brand | Qiongkai |
| Model Tag. | PCTR / PCTIB - FRP |
| Type | Cable tray |
| Product Name | Perforated FRP Cable Trunking |
| Material | FRP |
| Origin | Hebei, China |
| Perfortable Design | Customizable |
| Surface Treatment | / |
| Finish | / |
| Color | Green |
| Side Rail Height | 50 - 200 mm |
| Width | 50 - 800 mm |
| Length | 3 m |
| Thickness | 2.6 - 4.0 mm |
| Certificates | ISO / CE |
| ODM | √ |
| OEM | √ |
Shipping & Delivery Info
| MOQ | 50 |
| Insurance | Customizable |
| Loading Port | Shanghai / Tianjin |
| Selling Units | Meters / Pcs |
| Max. Working Load | According to Size |
| Production Capacity | 10,000 - 40,000 meters depend on product |
| Price Terms | LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU |
| After-sales | Online technical support |
| Free Sample | √ |
Key Features
It uses glass fiber and its products (such as glass cloth, tape, mat, yarn, etc.) as reinforcing materials, and synthetic resin as the matrix material, which is made through a certain molding process.
It has excellent tolerance to acids, alkalis, salts, etc., making it suitable for harsh environments.
Its high insulation property can effectively ensure electrical safety and reduce risks such as electric leakage.
Its high strength allows it to bear large loads. At the same time, its light weight facilitates handling and installation.
After adding flame-retarts, they have good flame-retart properties, reducing the risk of fire.
It has a smooth surface and various colors, which can be coordinated with the environment and has certain decorative properties.
Under normal usage conditions, it can be used for a long time, reducing replacement costs.
FRP materials also have lower prices than stainless and Galvanized materials. They might also have lower load capacity and intensity.
Certifications
Frequently Asked Questions
FRP cable trays offer significantly better ventilation compared to standard cable trunking, preventing heat build-up while maintaining high resistance to chemicals and moisture.
Yes, customization is supported for side rail heights (50 - 200 mm), widths (50 - 800 mm), and hole perforation patterns to suit specific project layouts.
The standard minimum order quantity for this product is 50 meters or pieces, depending on specifications.
Yes, free samples are available upon request to assist with quality inspection and technical validation.
Our perforated FRP cable trays comply with strict international guidelines and hold ISO and CE certifications.
Supported shipping terms include EXW for LCL shipments, and FOB, CIF, CFR, DDP, and DDU for full container loads (FCL), typically dispatched from Shanghai or Tianjin ports.
