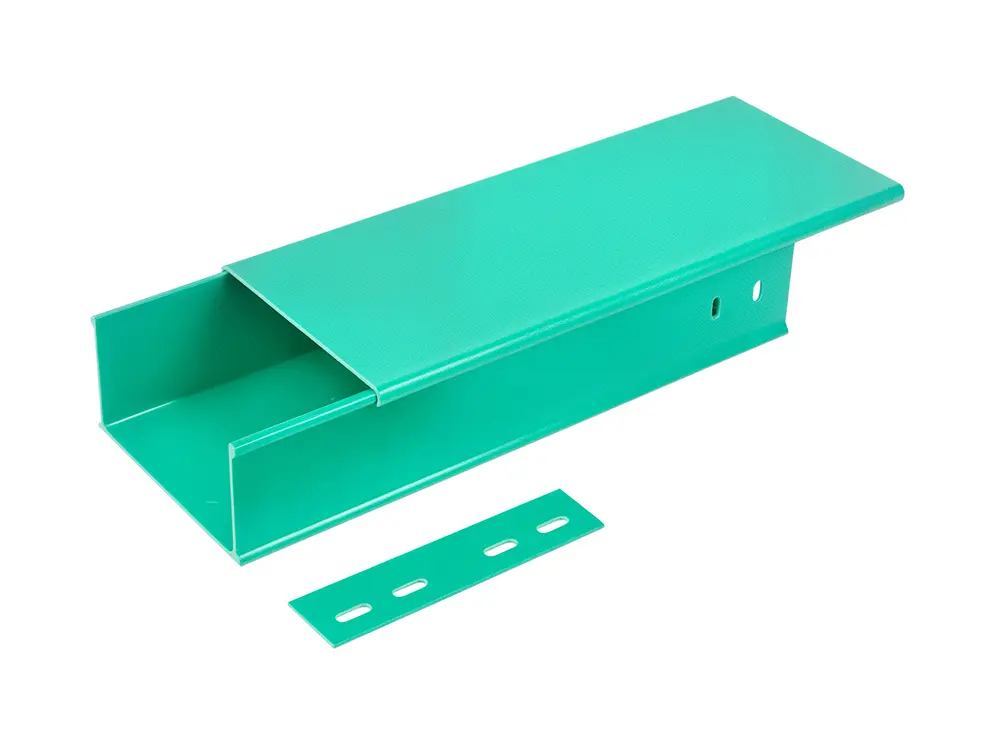

Wholesale High Strength FRP Cable Tray Suppliers, Price
Product Description
Product Overview
It uses glass fiber and its products as reinforcing materials and synthetic resin as the matrix material and is formed through a composite process. It is widely used in the field of cable laying for power, communication, etc.
Product Info
| Brand | Qiongkai |
| Model Tag. | CTR / CTIB - FRP |
| Type | Cable tray |
| Product Name | FRP Cable Trunking |
| Material | FRP |
| Origin | Hebei, China |
| Perforated Design | Customizable |
| Surface Treatment | / |
| Finish | / |
| Color | Green |
| Side Rail Height | 50 - 200 mm |
| Width | 50 - 800 mm |
| Length | 3 m |
| Thickness | 2.6 - 4.0 mm |
| Certificates | ISO / CE |
| ODM | √ Available |
| OEM | √ Available |
Shipping and Delivery Info
| MOQ | 50 |
| Insurance | Customizable |
| Loading Port | Shanghai / Tianjin |
| Selling Units | Meters / Pcs |
| Max. Working Load | According to Size |
| Production Capacity | 10,000 - 40,000 meters depend on product |
| Price Terms | LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU |
| After-sales | Online technical support |
| Free Sample | √ Available |
Specification & Weight
Key Features
Material Composition
Uses glass fiber and its products (such as glass cloth, tape, mat, yarn, etc.) as reinforcing materials, and synthetic resin as the matrix material through a dedicated molding process.
Good Corrosion Resistance
Features excellent tolerance against acids, alkalis, salts, and chemical agents, making it well-suited for harsh and corrosive environments.
Excellent Insulation Performance
High insulation capability effectively secures electrical safety and minimizes operational risks such as electric leakage.
High Strength & Light Weight
Delivers robust structural capacity to support substantial cable loads, while remaining lightweight for convenient handling and simplified installation.
Good Flame-Retardant Performance
Infused with flame-retardant additives, it effectively reduces the risk of fire and enhances overall installation safety.
Aesthetic Appearance
Provides a clean, smooth finish in green and other shades, ensuring pleasant visual coordination with varied project environments.
Long Service Life
Ensures prolonged operation under regular usage, substantially lowering lifecycle maintenance and replacement costs.
Lower Price Advantage
Offers a more economical alternative than stainless steel and galvanized products, with tailored load capabilities.
Certifications
Frequently Asked Questions
What material is used to manufacture this cable trunking?
The trunking is manufactured from high-quality Fiber Reinforced Polymer (FRP), using glass fiber products (such as cloth, yarn, and mat) as reinforcing agents and synthetic resin as the binding matrix through a composite molding process.
What are the standard dimensions and customization options?
Standard configurations feature a standard length of 3 meters, side rail heights between 50 mm and 200 mm, widths from 50 mm up to 800 mm, and wall thicknesses ranging from 2.6 mm to 4.0 mm. Perforated designs are also customizable.
Do you provide OEM and ODM manufacturing services?
Yes, both OEM and ODM requirements are fully supported. Customizations regarding dimensions, colors, perforations, and load capacities can be tailored according to specific project demands.
What shipping terms and delivery ports are available?
Shipments are dispatched mainly via Shanghai or Tianjin ports. For LCL orders, EXW terms apply. For FCL shipments, FOB, CIF, CFR, DDP, and DDU are available. Customizable cargo insurance can also be arranged.
Can I get free samples and after-sales support?
Yes, free samples are provided to help evaluate quality before placing larger orders. Ongoing after-sales support is delivered through dedicated online technical support teams.
