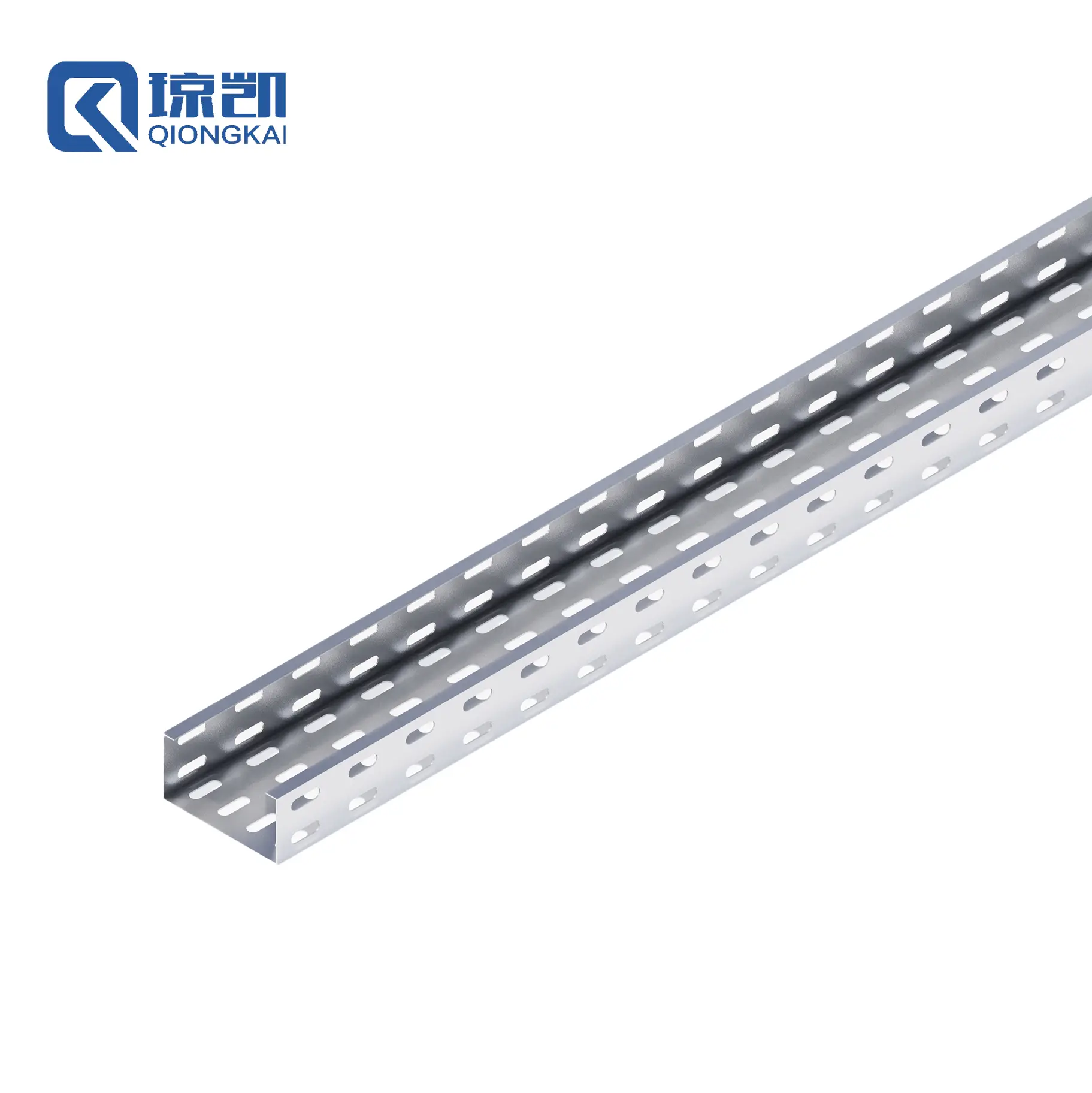

Wholesale Pre Galvanized Hot Dip Galvanized Perforated Cable Tray 100x50 Steel Cable Management Channel Manufacturer Supplier Factory

Product Overview

The characteristic of perforated cable trays is their excellent heat dissipation performance, which can meet the installation environments with high heat dissipation requirements. Ventilation and load capacity are both important aspects to be concerned will selecting cable trays. Comparing with cable trunkings, the perforated cable trays are more suitable for indoor installation.

Usually we follow the pill shape slotting pattern on all sides of our cable trays. Our company is equipped with laser cutting machines and can provide various perforated cable trays. If you have unique requirements for the shape and arrangement of the perforations, we support customization.

Product Parameters

Brand	Qiongkai
Model Tag	PCT -
Type	Cable tray
Product Name	Perforated Cable Tray
Material	Carbon Steel
Origin	Shanghai, China
Perfortable Design	Customizable
Surface Treatment	Pre-galvanized / Hot-dip-galvanized / Powder Coated
Finish	Raw / HDG / Powder coated
Color	Silver / Powder coated design
Side Rail Height	25 - 600 mm
Width	100 - 800 mm
Length	1 - 12 m
Thickness	0.5 - 2.0 mm
Certificates	ISO / CE
ODM	Supported
OEM	Supported

Shipping & Delivery Information

MOQ	50
Insurance	Customizable
Loading Port	Shanghai / Tianjin
Selling Units	Meters / Pcs
Max. Working Load	According to Size
Production Capacity	10000 - 40000 Meters depend on product
Price Terms	LCL: EXW FCL: FOB / CIF / CFR / DDP & DDU
After-sales	Online technical support
Free Sample	Supported

Key Features

Strong corrosion resistance: It can form a dense oxide film and has self - repairing ability, resistant to corrosion from moisture, acids, alkalis and salts.

Good wear resistance: The zinc layer has hardness and toughness, capable of withstanding friction and collision, reducing wear.

Good aesthetic property: It presents a uniform and bright silver - white appearance with high gloss, and is not prone to fading or color - changing.

Excellent processing performance: It has good plasticity and workability. The galvanized layer is not likely to peel off or crack during processing.

Good economy: The process is simple and low - cost. With a long service life, it can reduce the overall cost.

Relatively good environmental friendliness: There is less pollutant generated during production, and no harmful substances are released during use, meeting environmental requirements.

Common parameters

Zinc layer thickness: The anti - corrosion grade of galvanized cable trays depends on the thickness of the zinc layer. Our company can provide cable trays with zinc layer thicknesses of 10μm, 20μm, 30μm, 40μm, 45μm, 50μm, 60μm, 65μm, and even thicker ones. If the thickness exceeds 65μm, customization is required.

Width: Common widths include 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 800mm, etc.

Height: General heights are 50mm, 60mm, 100mm, 150mm, etc.

Thickness: The thickness of the trough body and cover plate varies according to the specifications and load - bearing requirements of the cable tray. Taking steel galvanized cable trays as an example, when the width of the cable tray B ＜ 300mm, the thickness of the trough body is generally not less than 1.2mm, and the thickness of the cover plate is not less than 1.0mm. When 300mm ≤ B ＜ 500mm, the thickness of the trough body is not less than 1.5mm, and the thickness of the cover plate is not less than 1.2mm, etc.

Length: The standard lengths are usually 2m, 3m, 4m, 6m, etc., and can also be customized according to actual needs.

Application scenarios

It is widely used in industries such as construction, power, communication, petrochemical, and metallurgy for the laying of indoor and outdoor cables. Specific application sites include electrical shafts, corridors, basements in buildings, as well as workshops, substations, and distribution stations in factories.

Certifications

Frequently Asked Questions

What are the primary benefits of perforated cable trays over solid trunking?

Perforated cable trays provide superior ventilation and heat dissipation, which is crucial for high-power cables. They also allow for easier cable tying, inspection, and moisture drainage while maintaining a strong load-bearing structure.

Can the hole pattern and dimensions be customized?

Yes. While the pill-shaped slotting pattern is our standard layout, our facility is equipped with advanced laser cutting machines that allow full customization for perforation patterns, side rail heights, widths, and lengths.

Which surface treatments are available for different environments?

We offer Pre-galvanized, Hot-dip Galvanized (HDG), and Powder Coated finishes. HDG is ideal for harsh outdoor or chemical environments due to its heavy zinc coating, while pre-galvanized and powder-coated finishes are suitable for clean indoor spaces.

What is the standard lead time and Minimum Order Quantity (MOQ)?

The standard MOQ is 50 meters/pieces. With a production capacity between 10,000 and 40,000 meters depending on specifications, standard orders typically ship promptly from Shanghai or Tianjin ports.

Do you supply product samples before bulk manufacturing?

Yes, free samples can be arranged upon request to allow you to assess the material quality, thickness, and finish before placing a full-scale production order.
