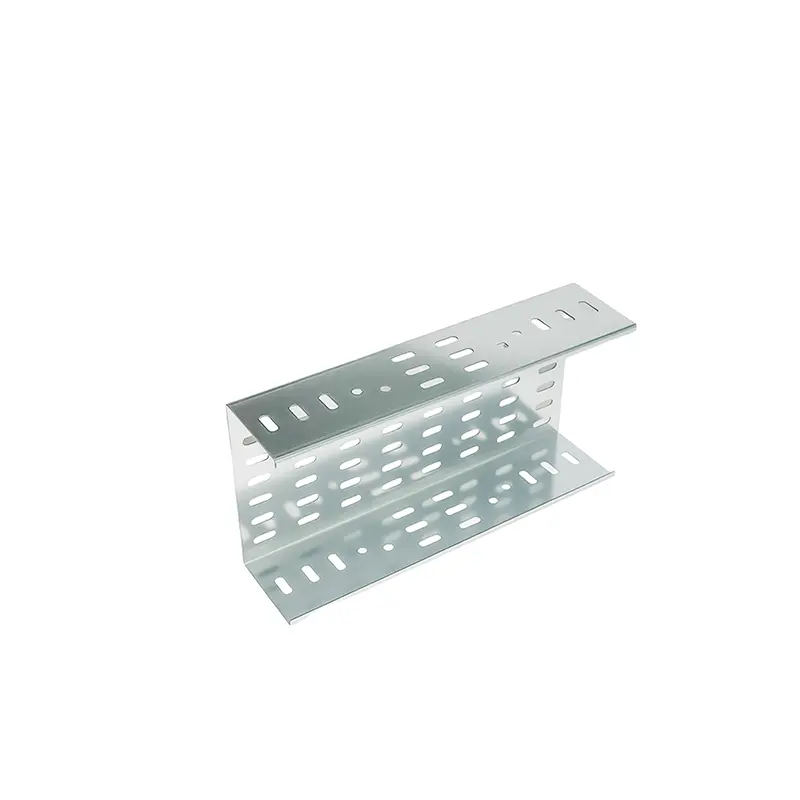

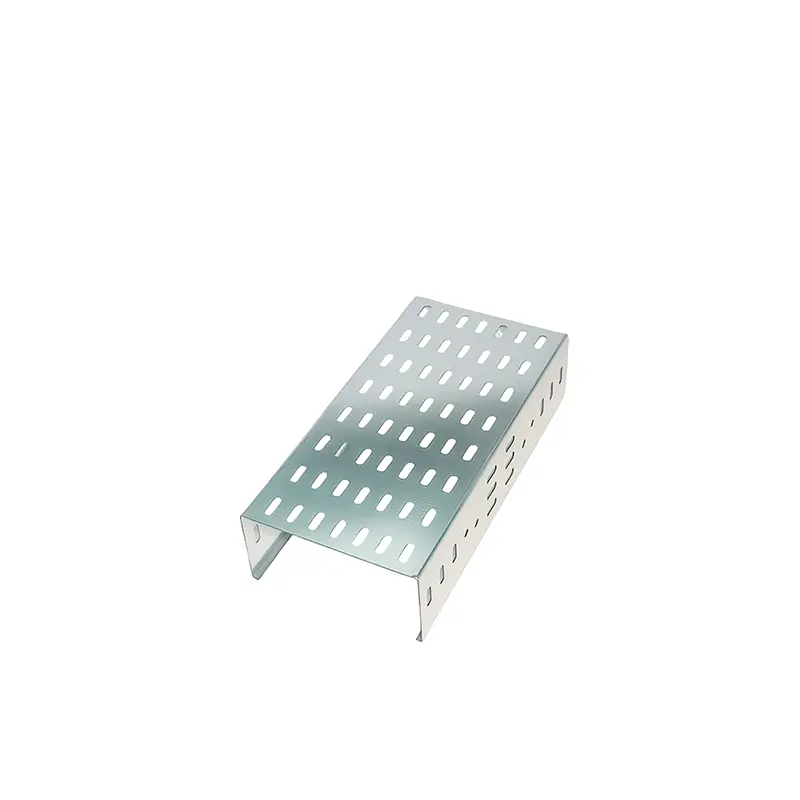

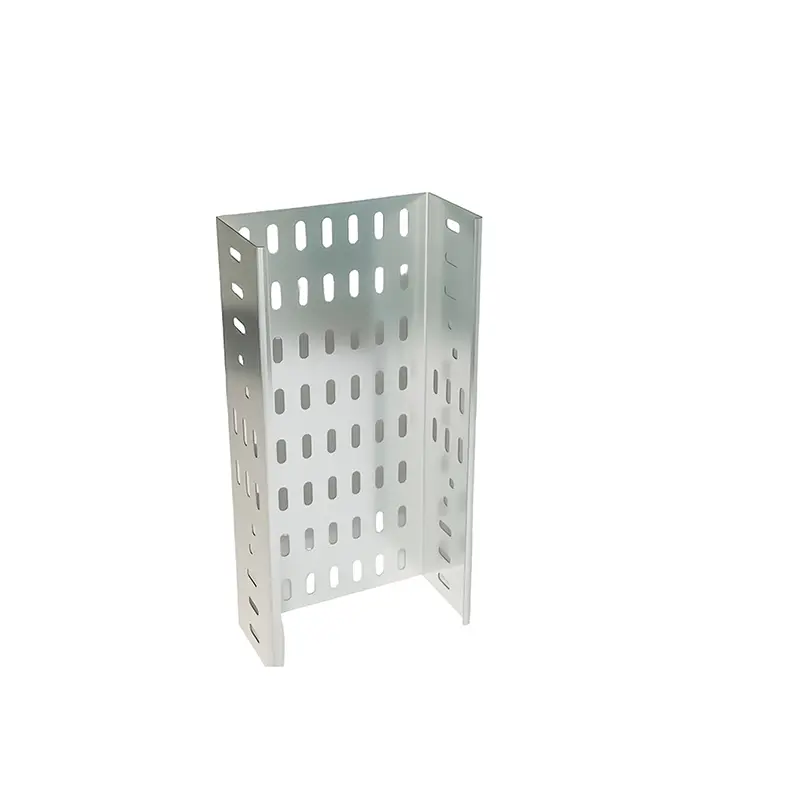

Wholesale Slotting Pattern Customizable Pre Galvanized Cable Trays Manufacturer, Factory

It can form a dense oxide film and has self - repairing ability, resistant to corrosion from moisture, acids, alkalis and salts.

The zinc layer has hardness and toughness, capable of withstanding friction and collision, reducing wear.

It presents a uniform and bright silver - white appearance with high gloss, and is not prone to fading or color - changing.

It has good plasticity and workability. The galvanized layer is not likely to peel off or crack during processing.

The process is simple and low - cost. With a long service life, it can reduce the overall cost.

There is less pollutant generated during production, and no harmful substances are released during use, meeting environmental requirements.

The anti - corrosion grade of galvanized cable trays depends on the thickness of the zinc layer. Our company can provide cable trays with zinc layer thicknesses of 10μm, 20μm, 30μm, 40μm, 45μm, 50μm, 60μm, 65μm, and even thicker ones. If the thickness exceeds 65μm, customization is required.

Common widths include 50mm，100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 800mm, etc.

General heights are 50mm, 60mm, 100mm, 150mm, etc.

The standard lengths are usually 2m, 3m, 4m, 6m, etc., and can also be customized according to actual needs.

The thickness of the trough body and cover plate varies according to the specifications and load - bearing requirements of the cable tray. Taking steel galvanized cable trays as an example, when the width of the cable tray B ＜ 300mm, the thickness of the trough body is generally not less than 1.2mm, and the thickness of the cover plate is not less than 1.0mm. When 300mm ≤ B ＜ 500mm, the thickness of the trough body is not less than 1.5mm, and the thickness of the cover plate is not less than 1.2mm, etc.
